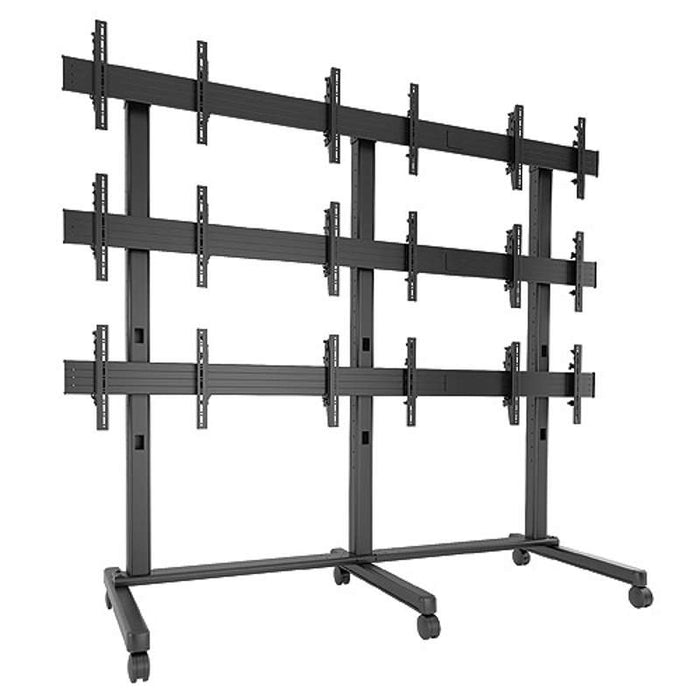

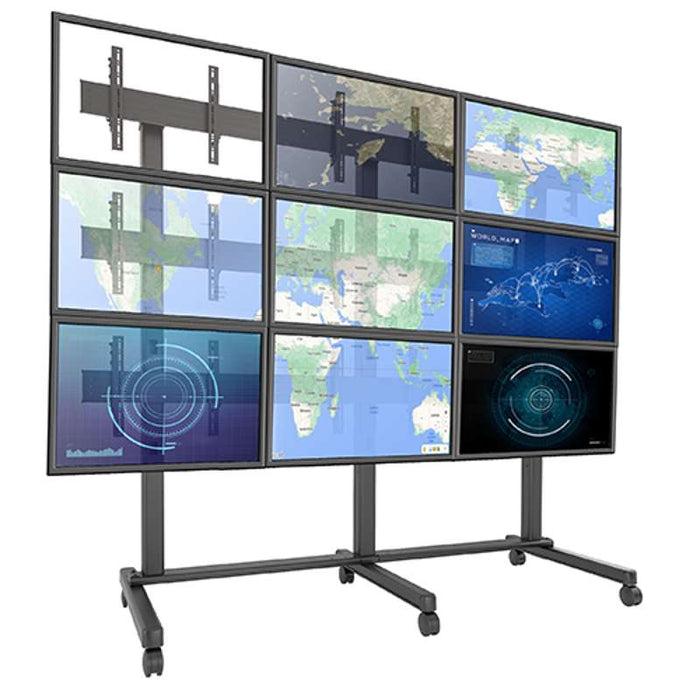

Fusion® 3 x 3 Micro-Adjustable Large Freestanding Video Wall
Chief's Fusion® cart freestanding solution makes it possible to construct video walls in prominent locations for temporary situations.
Screen array configuration: 3 screens wide x 3 screens high.
3 x 3 screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder™ to confirm compatibility
Easily align displays with independent height, plumb and lateral shift adjustment
Smooth rolling casters for effortless positioning (1 locking caster per leg)
Integrated cable management for a clean installation
Available leveling feet (FCA776) for more permanent installations
TAA Compliant
Dimensions & Measurements
- Center of Display To Floor Table Range: 24" (609.6 mm) (minimum bottom row) - 90" (2286 mm) (maximum top row)
- Lateral Shift: Yes
- Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
- Overall Dimensions: 75" x 39" x 9" (1905 x 990.6 x 228.6 mm)
- Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
- Shipping Weight: 346 lbs (156.9 kg)
- Weight Capacity: 100 lbs (45.4 kg)
Characteristics & Features
- Adjustability: Height Adjustable, Micro-Adjustable
- Application: Cart
- Array Configuration: 3x3
- Color: Black
- Number of Displays: 9
- Orientation: Landscape
- Solution Type: Universal
- Special Features: Multi-Display
Certifications & Warranties
- Certifications: TAA, UL Listed
