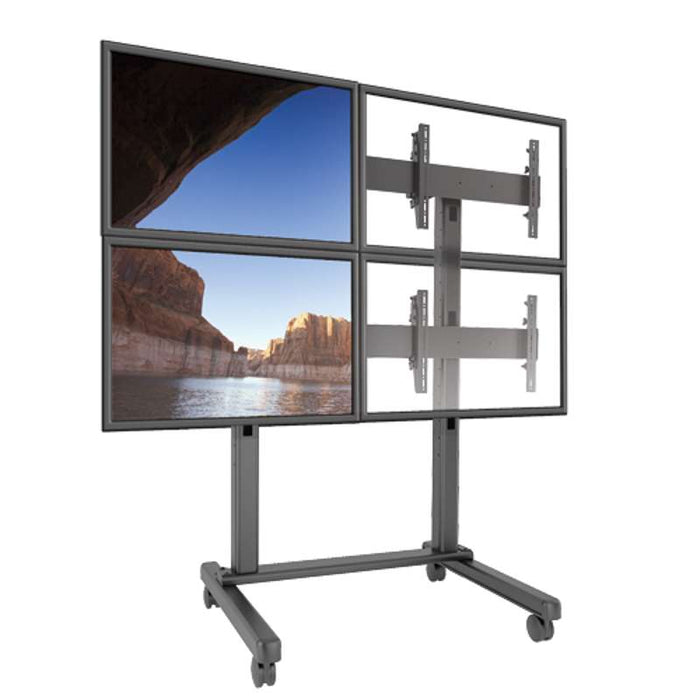

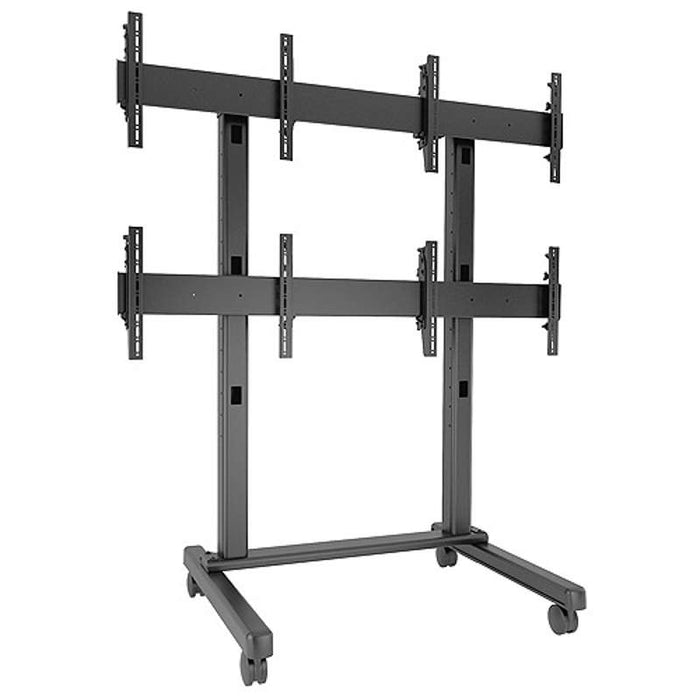

Fusion® 2 x 2 Micro-Adjustable Large Freestanding Video Wall Cart
Chief's Fusion® Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 2 screens wide x 2 screens high.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion® Universal Back Covers.
2 x 2 screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder™ to confirm compatibility
Easily align displays with independent height, plumb and lateral shift adjustment
Bolt-down solution allows for a permanent solution
Integrated cable management for a clean installation
TAA Compliant
Dimensions & Measurements
- Center of Display To Floor Table Range: 24" (609.6 mm) (minimum bottom row) - 72" (1829 mm) (maximum top row)
- Depth: 40.4
- Height: 80.5
- Lateral Shift: Yes
- Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
- Overall Dimensions: 80.5" x 72.5" x 40.4" (2045 x 1842 x 1026 mm)
- Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
- Shipping Weight: 219 lbs (99.3 kg)
- Typical Screen Size: 42"-50" (1067mm - 1270mm)
- Weight Capacity: 125 lbs (56.7 kg)
- Width: 72.5
Characteristics & Features
- Adjustability: Height Adjustable, Micro-Adjustable
- Application: Cart
- Array Configuration: 2x2
- Color: Black
- Number of Displays: 4
- Orientation: Landscape
- Solution Type: Universal
- Special Features: Multi-Display
Certifications & Warranties
- Certifications: TAA, UL Listed
