Chief FCAXV1U Fusion Extra-Large Pull Out Accessory

Fusion™ Extra-Large Pull Out Accessory, #FCAXV1U

The Fusion™ Extra-Large Pull Out accessory can be used with Fusion™ Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall.

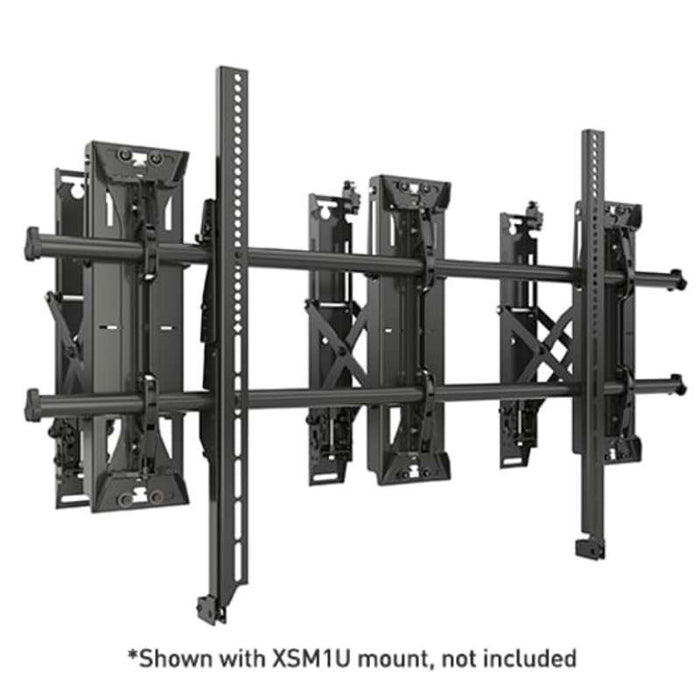

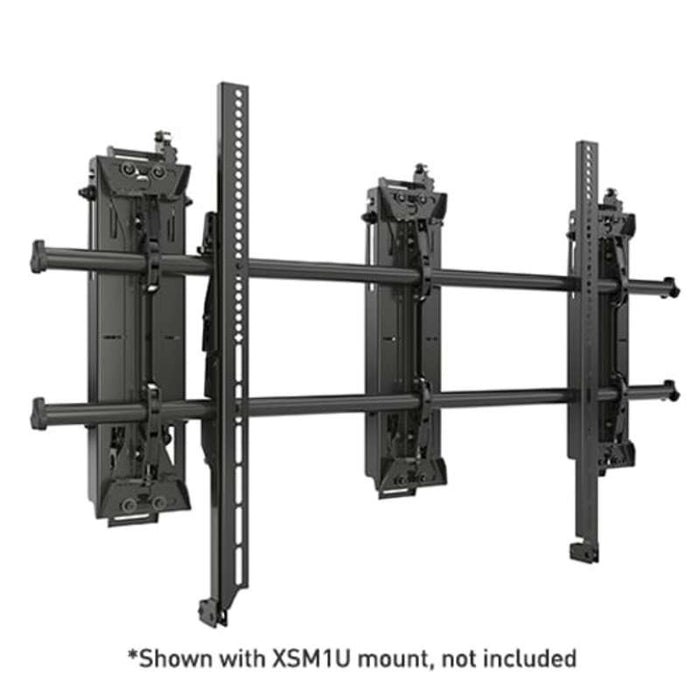

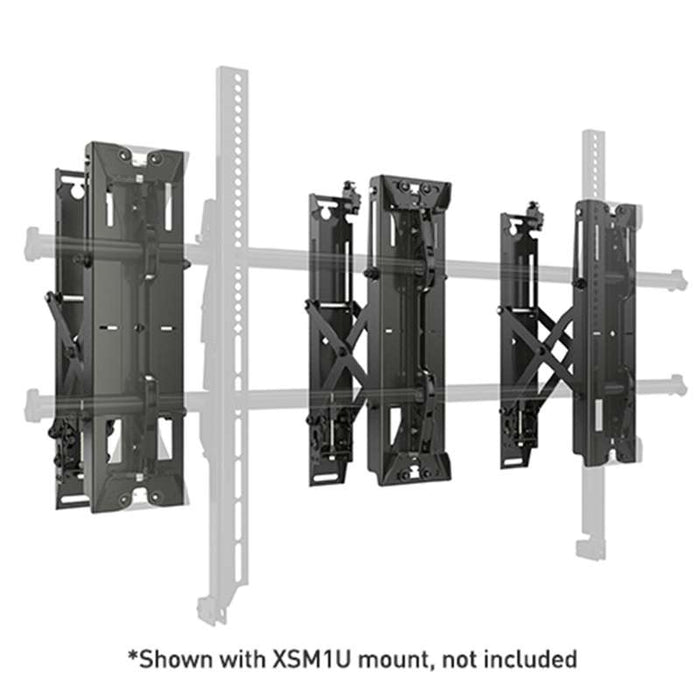

Compatible display mount models are XSM1U and XTM1U.

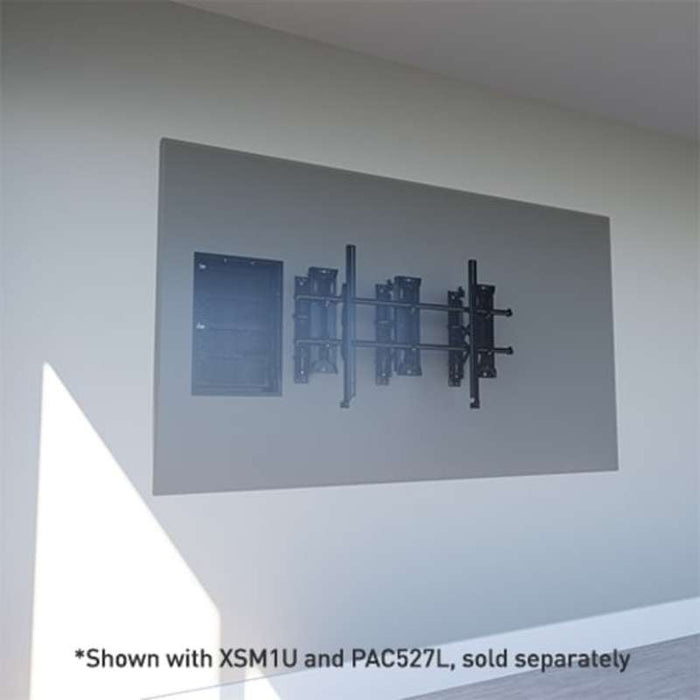

Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display.

Key Features

• Up to 11.54” (293 mm) extension when combined with Fusion mount - great for recessed applications

• Scissor assembly extends out up to 9.5"

• Plumb adjust to keep display in line with the wall

• Latch to secure mount in home position

• Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80”+ displays (up to 250 lb / 113 kg)

Dimensions & Measurements

• Minimum Depth: Retracted depth without mount: 1.56" (39 mm)
• Plumb Adjustment: +0.5° / -2°
• Typical Screen Size: Extra-Large
• Weight Capacity: 250 lbs (113.4 kg)

Characteristics & Features

• Accessory Type: Extension
• Application: Wall
• Color: Black
• Solution Type: Universal
• Special Features: Multi-Display

Certifications & Warranties

• Certifications: UL Listed
