Chief Camera Shelf for Tempo Flat Panel In-Wall Mount System

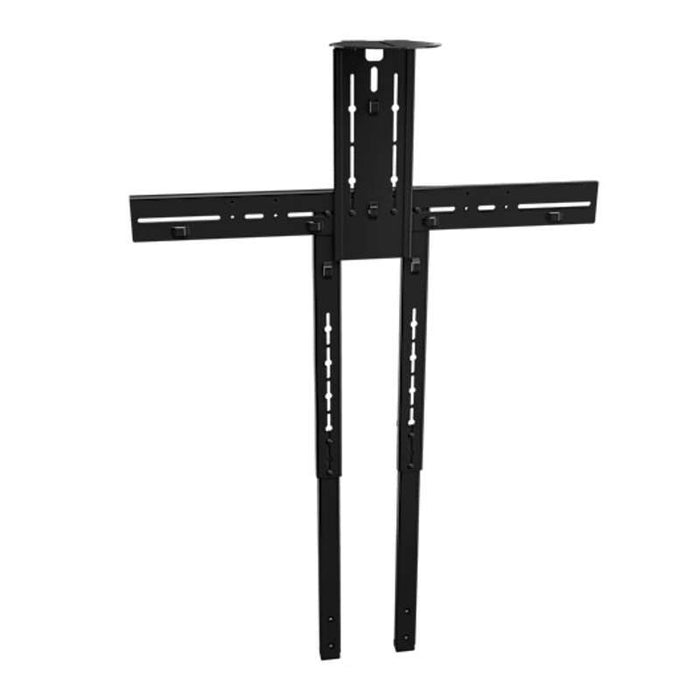

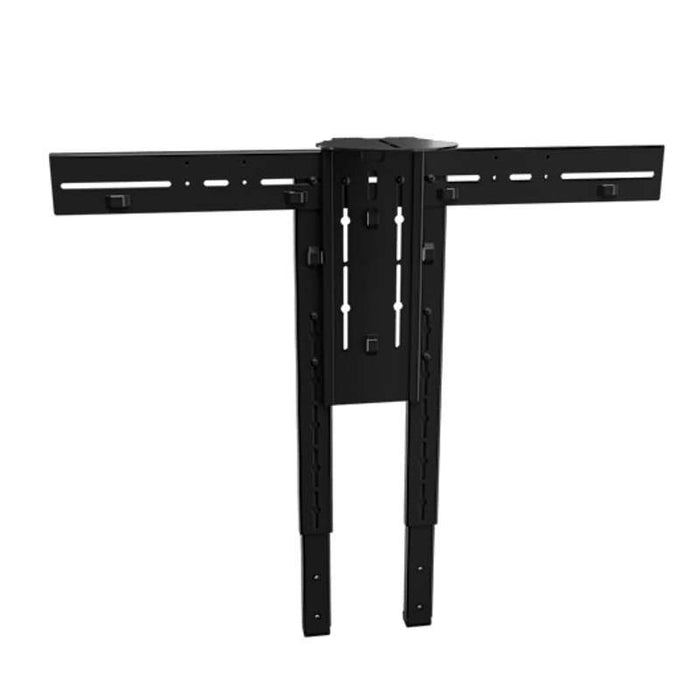

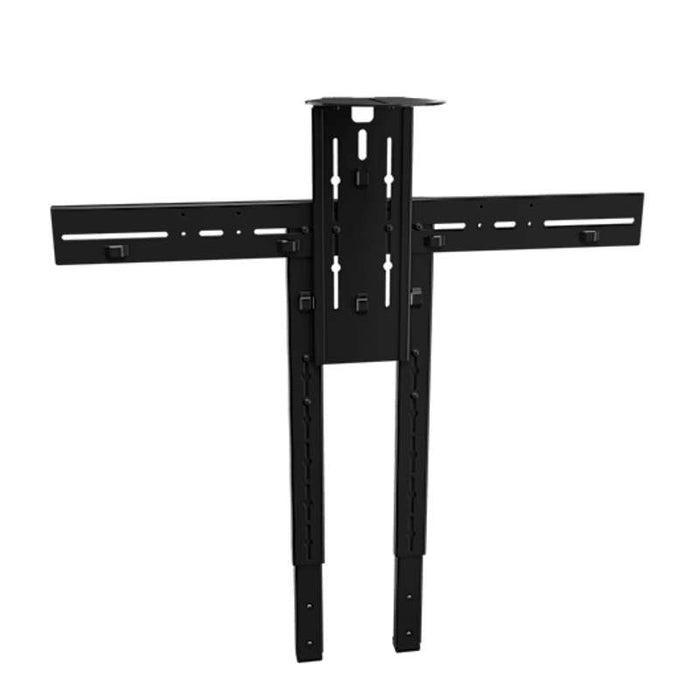

Camera Shelf for Tempo™ Flat Panel In-Wall Mount System

Complete your AV system installations with this Installer Inspired camera shelf for use with Tempo Flat Panel In-Wall Mount Systems.

• Camera shelf is 6” (152 mm) and has a 4” (102 mm) depth adjustment slot to facilitate placement of the camera using ¼”-20 screw.
• Fits most cameras with ¼”-20 tripod mounting hole.

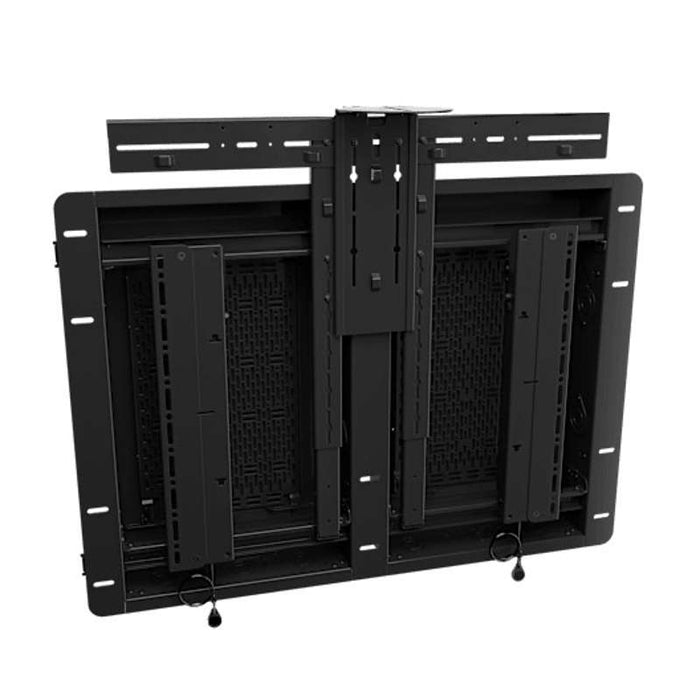

• Quick and easy installation. The camera shelf glides and locks into place on the top or bottom rail of the Tempo Flat Panel In-Wall Mount System.
• Horizontal lateral shift allows you to position the camera shelf as needed to center with the display.

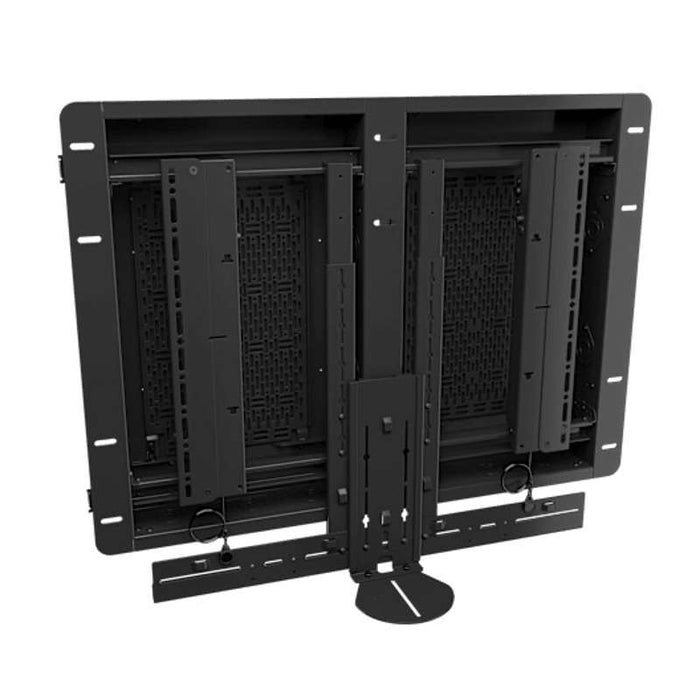

• Height adjustment allows 15.56” (395 mm) of travel to easily position the camera shelf at the right height above or below the display.
• Window opening and slots along both sides of the vertical bracket facilitate cable management.
• Weight capacity of 15 lbs (6.8 kg).

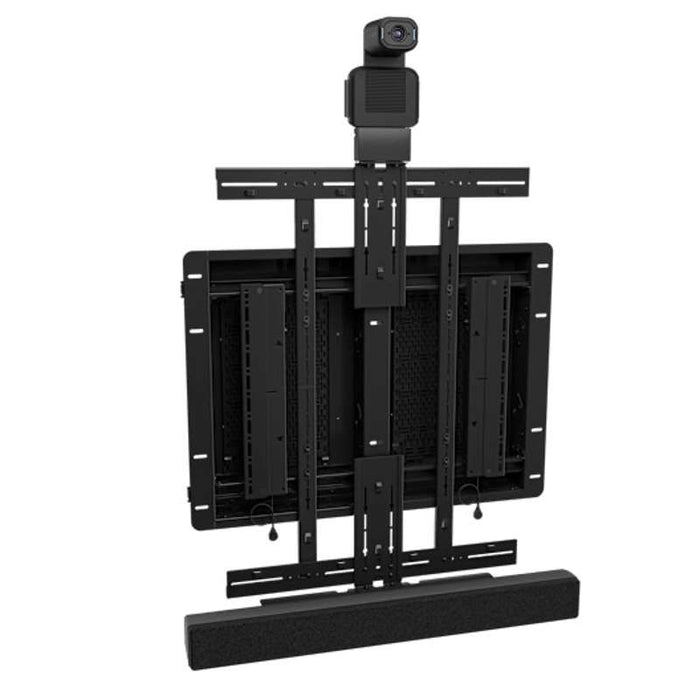

• Includes mounting bracket for Vaddio IntelliSHOT and ConferenceSHOT ePTZ cameras.
• IMPORTANT! Installation pre-requisite: Tempo Flat Panel In-Wall Mount System FPIWMS mounting rails must be installed at a minimum 1” depth prior to installation of either FPIWMA100 and FPIWMA101 accessories.

Dimensions & Measurements

• Manual Height Adjustment: 15.56 in (395.2 mm)
• Shipping Dimensions: 30" x 6" x 6" (762 x 152 x 152 mm)
• Shipping Weight: 10.8 lbs (4.9 kg)
• Weight Capacity: 15

Characteristics & Features

• Accessory Type: Camera Shelves
• Color: Black
