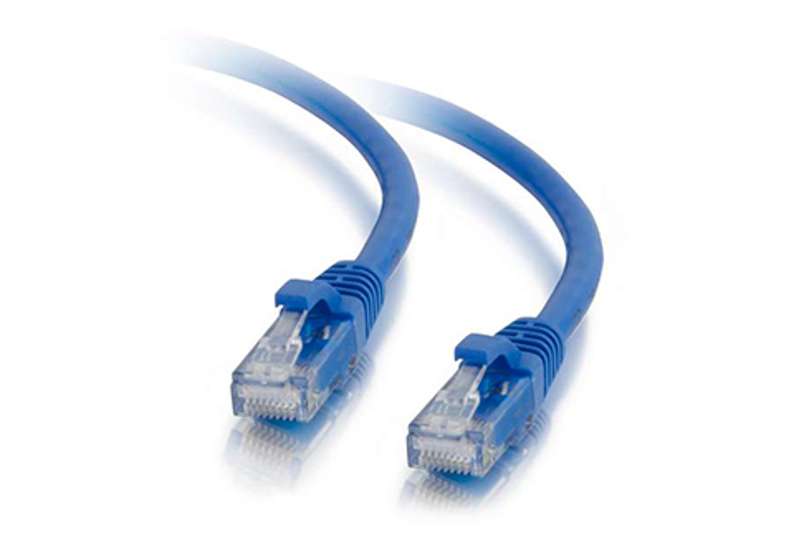

Cables To Go 7ft Cat5e Snagless Unshielded -UTP- Ethernet Network Patch Cable - Blue

7ft Cat5e Snagless Unshielded (UTP) Cable, Blue, #15193

• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 10 colors to color code a network
• Available in lengths up to 200ft – Ethernet Cable / Network Cable / Patch Cable / Cat5e Cable / Category Cable – 7 foot / 7 feet / 7’

For voice/data/video distribution, this cable will handle bandwidth-intensive applications up to 350 MHz. Meets all Cat5E TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL) when compared to standard 100 MHz wire.

Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point.

Constructed from high-quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels.

The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

Connector 1: RJ45 Male
Connector 2: RJ45 Male

Specifications

Electrical Characteristics

• Conductor DC Resistance - 89Ω/km (maximum)
• Insulation Resistance - 100Ω/km (maximum)
• Dielectric Strength - 500MV/m
• Certification: TIA/EIA


Physical Characteristics

• Wiring Scheme - TSB 568B (AT&T 258A)
• Approvals - RoHS Compliant
• Package Type - Polybag

Conductor (Qty. 4 twisted pair)
• Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
• Insulation - H-D PE
• Diameter - 0.95 ± 0.02mm
• Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

Connector Type (Qty. 2)
• Connector Type - 8P8C (RJ45)
• Gender - Male
• Connector Material - Polycarbonate
• Contact Material - Copper Alloy, Gold Plating - 50µm
• Hood Material - Moulded PVC

Overall Cable
• Jacket - FR-PVC
• Minimum Average Thickness - 0.55mm
• Outer Diameter - 5.30 ± 0.15mm

Product Uses

• 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
• 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
• 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
• Voice
