Cables To Go 20ft Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Blue

SKU CABCG10318

MSKU: CG10318

Original price $17.99 - Original price $17.99
Original price
$17.99
$17.99 - $17.99
Current price $17.99
Call to Order

Free Shipping on ALL orders!

Typically ships in 3-5 days. Call of chat for current availability.

Specifications
Cable-length: 20.0
Cable-type: Network cable
Connection-one: Rj-45
Connection-two: Rj-45
Depth: 6.5 in.
Height: 1.5 in.
Taa: Yes
Use-case: Government
Warranty-years: Lifetime
Width: 7.0 in.

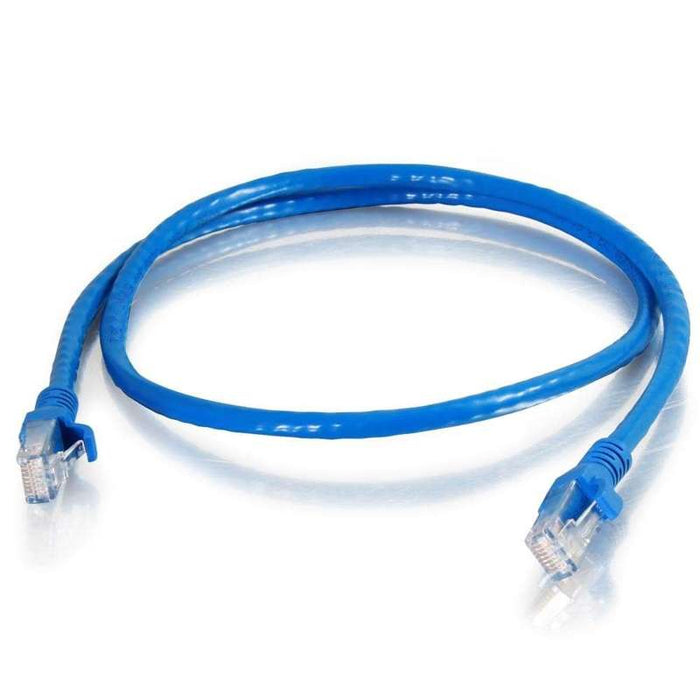

20ft Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Blue

For voice/data/video distribution, this cable will handle bandwidth-intensive applications . Meets all TIA/ANSI standards and the stringent TAA compliance requirements for anyone who needs to procure products exclusively manufactured in countries on the Trade Agreement Act list.

Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snag-free boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

Electrical Characteristics

  • Conductor DC Resistance - 9.38
  • 100m (maximum)
  • Impedance - 100
  • Capacitance - 5600pf/100m
  • Propagation Delay - 545ns/100m (maximum)
  • Delay Skew - 45ns/100m (maximum)

    Physical Characteristics

  • Wiring Scheme - T568B
  • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
  • Connector: 50 micron gold-plated RJ45
  • Temperature Rating - 60°C
  • Voltage Rating - 30V
  • Approvals - RoHS Compliant
  • Warranty - Lifetime
  • Package Type - Polybag

    Conductor (Qty. 4 twisted pair)

  • Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
  • Insulation - H-D PE
  • Diameter - 0.98 ± 0.05mm
  • Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

    Connector Type (Qty. 2)

  • Connector Type - 8P8C (RJ45)
  • Gender - Male
  • Connector Material - Polycarbonate
  • Contact Material - Copper Alloy, Gold Plating - 50µm
  • Hood Material - Molded PVC

    Overall Cable

  • Jacket - PVC
  • Minimum Average Thickness - 0.60mm
  • Outer Diameter - 6.20 ± 0.30mm
