Bose ControlSpace CC-16 zone controller

by Bose
SKU BOS41761

MSKU: 41761

Original price $386.00 - Original price $386.00
Original price
$386.00
$386.00 - $386.00
Current price $386.00
Call to Order

Free Shipping on ALL orders!

Typically ships in 3-5 days. Call of chat for current availability.

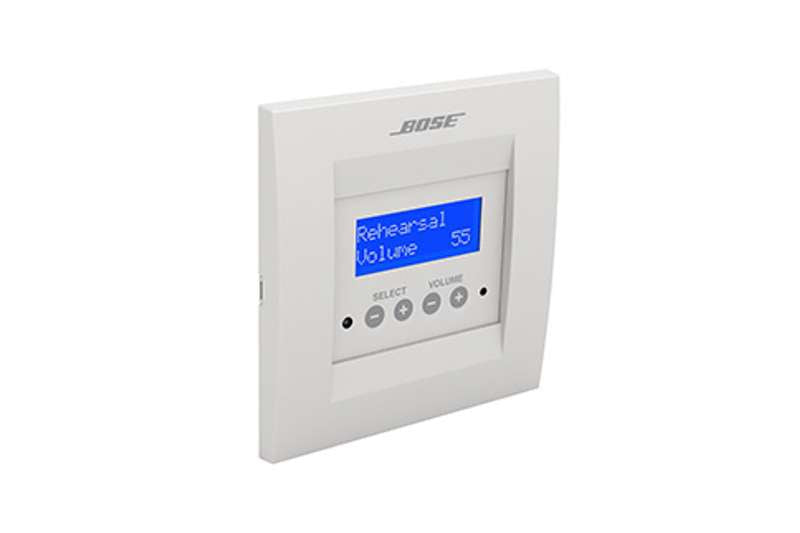

ControlSpace CC-16 zone controller, #41761

The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.

Features

  • Elegant styling with intuitive controls for end user operation

  • 122 x 32 pixel backlit blue LCD

  • Sealed VOLUME +/- and SELECT +/- pushbuttons

  • Simplified drag-and-drop setup using ControlSpace® Designer™

  • DIP switch addressing on back of unit

  • Programmable control of system elements (switching of audio sources, system configurations)

  • Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users

  • Customizable on-screen wording provides easier system operation

  • Programmable software lock out

  • Fits into a standard 2-gang electrical wall box



Technical Specifications

Connectors
Fixed 6-position terminal connector for power (Vin+, GND) and RS-485 (A, B)

Maximum Cable Length
2000' (609 m), twisted pair, daisy-chain wired configuration

Maximum Number of Units Per System
15 per ControlSpace ESP processor

Power Supply Requirement
8 - 18 VDC, 100 mA
