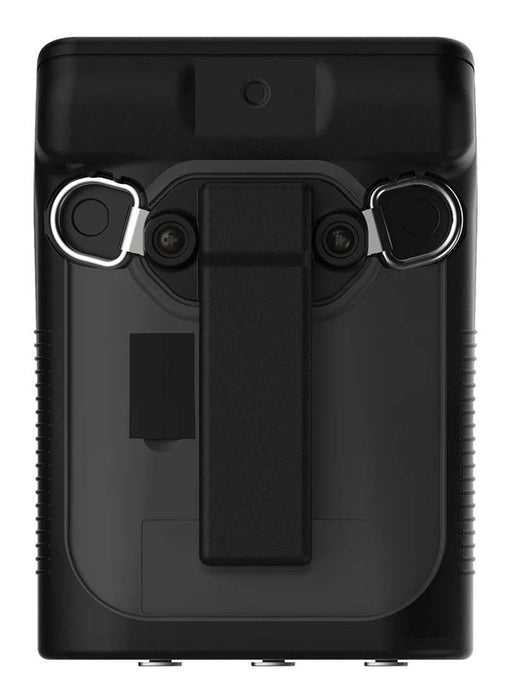

DBP 4-Channel Digital Partyline IP Beltpack with 5-Pin Female XLR
Key Features:
- Supports up to four active partyline channels with independent volume control and talk/listen buttons
- 5-pin female XLR headset connector with binaural stereo audio support

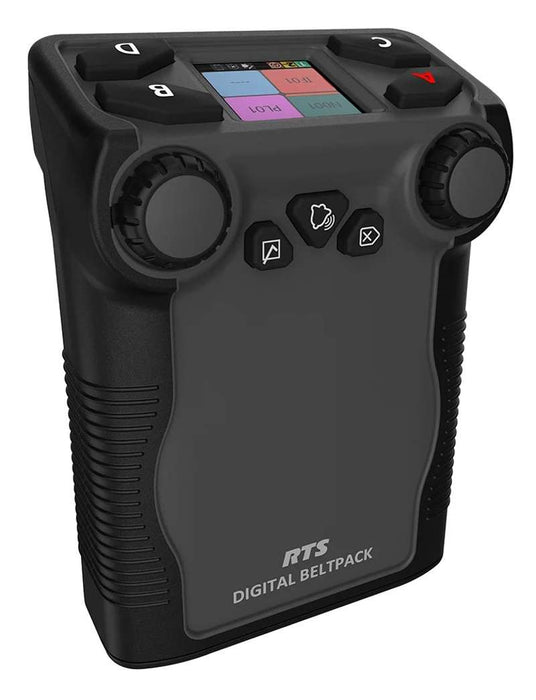

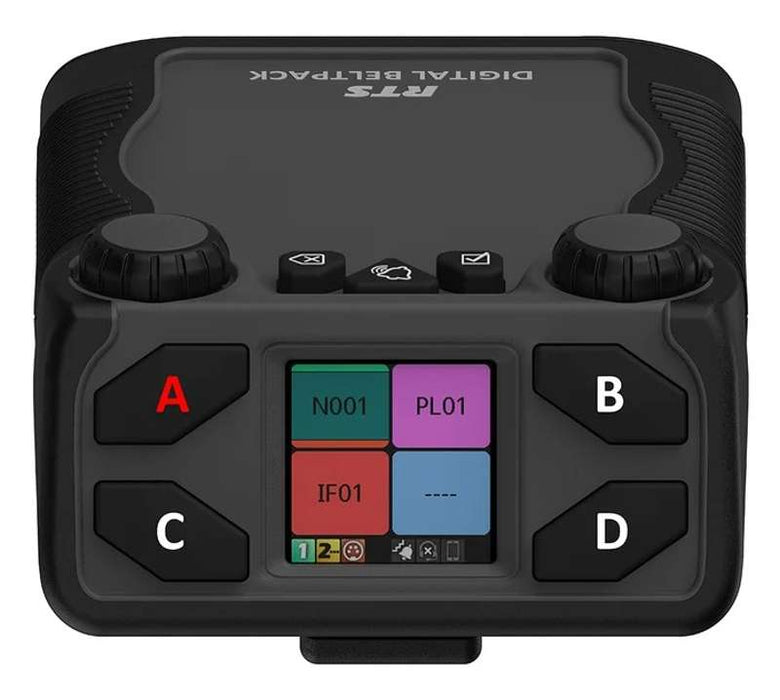

- Full-color anti-glare TFT display with intuitive icon-based menu interface

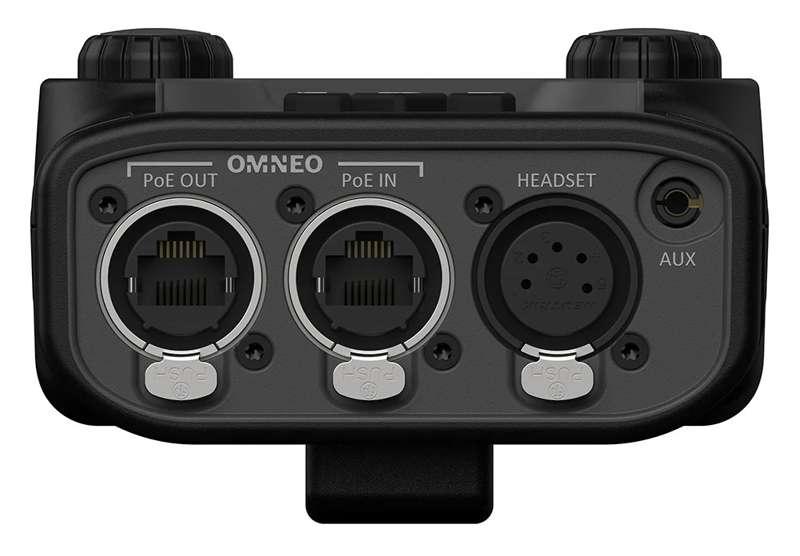

- Powered via 802.3af/at PoE with dual Ethernet ports for daisy-chaining up to six beltpacks
- OMNEO IP technology enables matrix keypanel mode or digital partyline system integration
- Rugged over-molded IP53-rated housing built for demanding live production environments
- Audible call alerts and haptic vibration feedback for noisy environments
- Auxiliary 3.5mm headset jack and optional USB Bluetooth audio connectivity
Versatile OMNEO IP Architecture
The DBP-5F operates seamlessly within OMNEO IP networks, functioning either as a digital partyline device or as a keypanel connected to digital matrix systems like ODIN or ADAM. Its dual RJ-45 Ethernet ports allow up to six beltpacks to be daisy-chained from a single PoE switch port, reducing cable runs on busy production floors.
Intuitive Control and Ergonomic Design
Featuring an anti-glare TFT display and tactile volume controls, the beltpack offers rapid menu navigation and status monitoring even under harsh stage lighting. The 5-pin female XLR connection accommodates dual-ear stereo headsets, while haptic vibration ensures operators never miss an incoming call signal.
