ATEM Mini Pro – 4‑Input HDMI Live Production Switcher with Streaming and Recording
Key Features
- 4 HDMI inputs with built‑in standards conversion for connecting cameras, laptops, or game consoles in different formats.
- Hardware live streaming via Ethernet using RTMP directly to YouTube, Facebook, and more, without a separate encoder.
- Direct recording to external USB flash disks in H.264 with AAC audio for instant upload‑ready files.
- USB‑C output that works like a webcam, enabling easy use with Zoom, Teams, Skype, or any video conferencing software.
- Full multiview output to a single HDMI monitor showing all inputs, preview, program, and status of recording, streaming, and audio levels.
- Built‑in Fairlight audio mixer with 6‑band EQ, compressor, limiter, gate, and audio‑follow‑video on each input for professional sound.
- DVE (digital video effects) for picture‑in‑picture layouts, ideal for game streams, webinars, and live commentary.
- Advanced chroma key for green screen, plus upstream and downstream keyers, pattern generators, and a 20‑still media pool for titles and logos.
- Remote camera control for compatible Blackmagic Pocket Cinema Cameras, including color, gain, and more, from the ATEM Software Control.
- Free ATEM Software Control app for Mac and Windows to access deep switcher, macro, media, and audio settings over Ethernet or USB.
Compact All‑in‑One Live Production Switcher

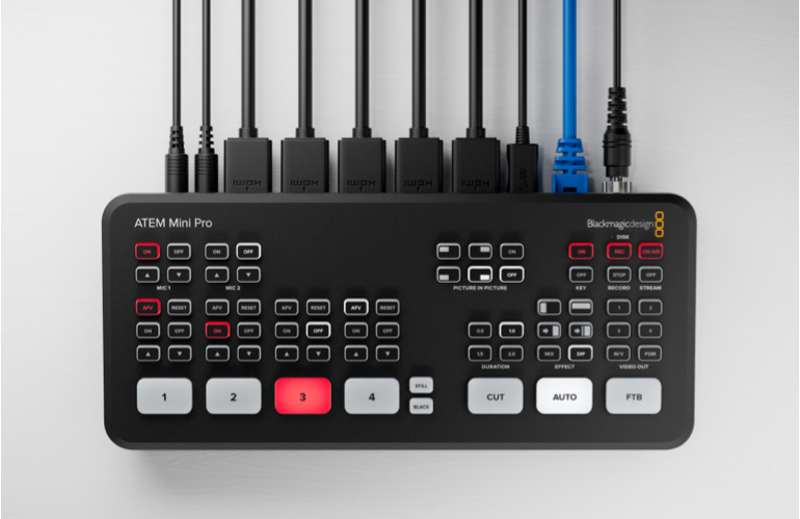

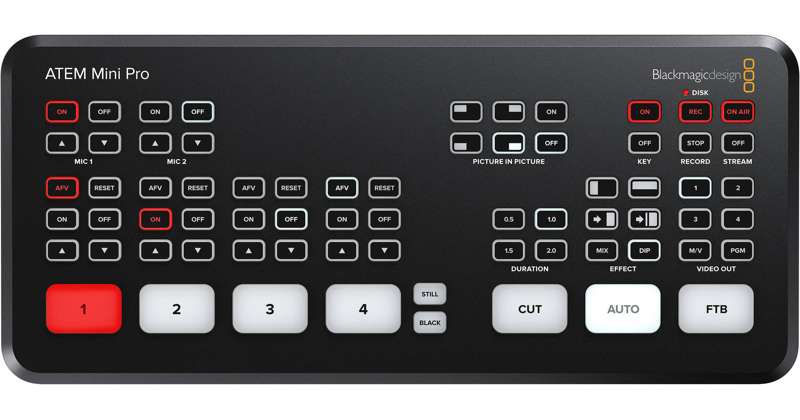

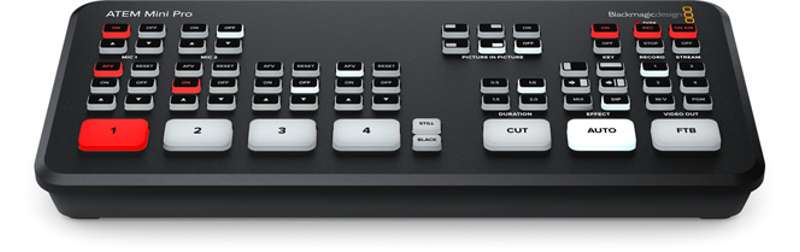

The Blackmagic Design ATEM Mini Pro is a powerful all‑in‑one solution for live streaming, multi‑camera production, webinars, worship, education, and corporate events. Compact enough to fit on any desktop, it packs professional broadcast tools into a simple hardware panel with dedicated buttons for sources, audio, transitions, picture‑in‑picture, and recording. With four HDMI inputs and built‑in standards conversion, you can mix cameras, laptops, tablets, and game consoles—even when they are running different formats—without external converters.
Built‑in Streaming, Recording, and Multiview

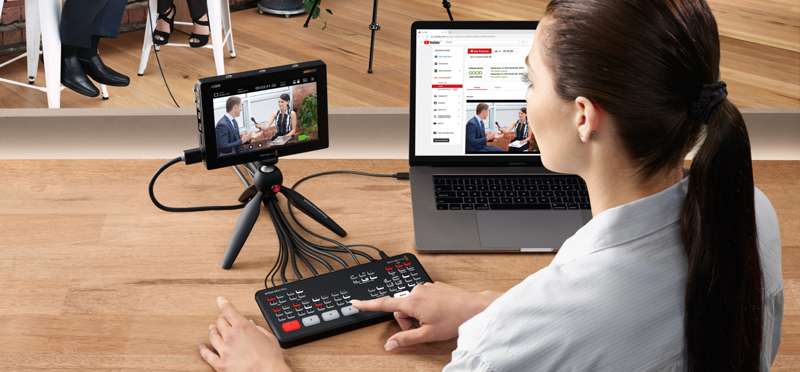

Unlike basic switchers, ATEM Mini Pro includes hardware‑based live streaming over Ethernet, so you can go live directly to platforms like YouTube, Facebook, or Twitch using RTMP, without needing a separate computer or software encoder. At the same time, you can record your program feed straight to USB flash disks in H.264 with AAC audio, creating upload‑ready .mp4 files ideal for quick turnaround delivery or archiving. Multiview monitoring via the HDMI output shows all four inputs, preview, program, and clear status indicators for streaming, recording, and audio levels, so you always know what’s happening in your production.
Professional Audio and On‑Board Effects
Audio is handled by the integrated Fairlight mixer, which gives you per‑input control with level, balance, audio‑follow‑video, plus advanced processing like 6‑band parametric EQ, compressor, limiter, and noise gate. This allows you to deliver broadcast‑quality sound whether you’re mixing camera mics, external microphones, or line‑level feeds. For visuals, the built‑in DVE lets you create picture‑in‑picture layouts for commentary and tutorials, while the advanced chroma keyer, upstream and downstream keyers, and 20‑image media pool let you layer titles, logos, and green‑screen effects like a full broadcast studio.
Camera Control and Software Integration

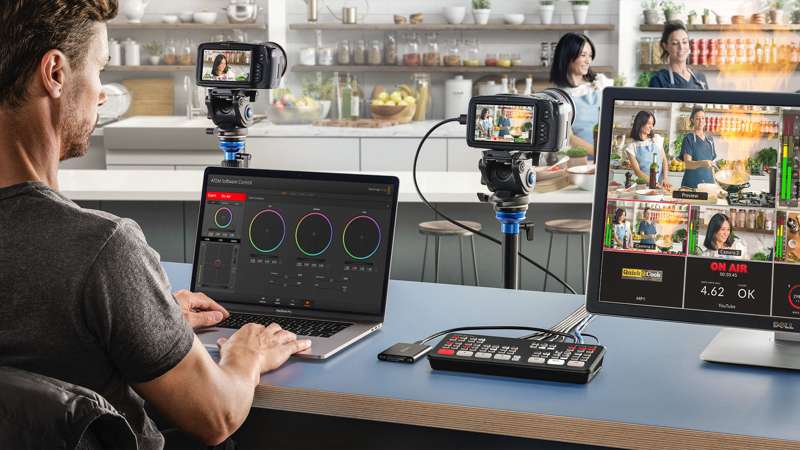

ATEM Mini Pro also integrates tightly with Blackmagic Pocket Cinema Cameras, enabling remote control of camera settings, color correction, and even external recording triggers directly from the switcher. Using the free ATEM Software Control app over USB or Ethernet, you gain deep access to all switcher parameters, macro automation, media management, and precise audio mixing from your Mac or PC. Whether you are a content creator, house of worship, school, or small production team, ATEM Mini Pro delivers a professional, multi‑camera live production workflow in a single, affordable box.
