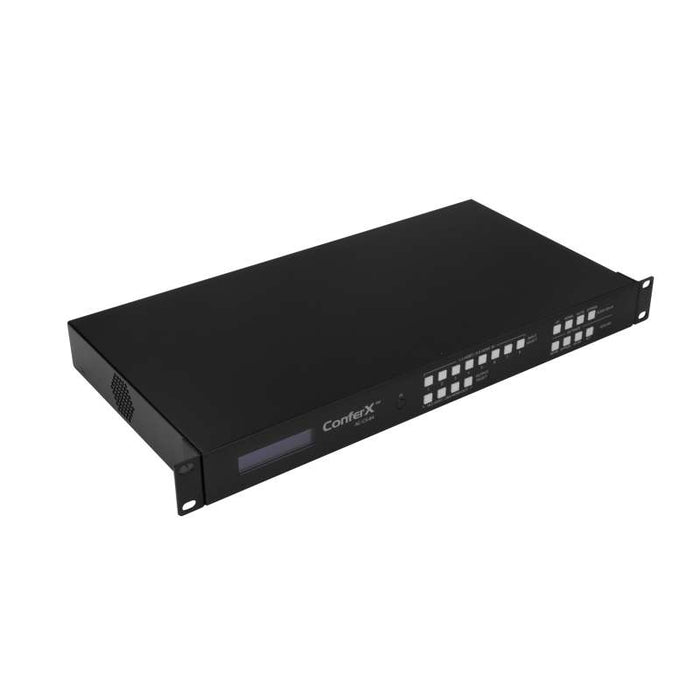

ConferX 4K 8x4 Matrix Switcher with Instant Switching
Features
- Instant Switching through HDBaseT and HDMI Outputs
- New Scaling Options tailored to Commercial Applications
- HDBaseT Input and Output Bidirectional RS-232 Support
- HDMI Stream Control and HDMI 5 Volt Toggle for CODEC disconnection
- Aspect Ratio Conversion for new ultrawide format displays
Description

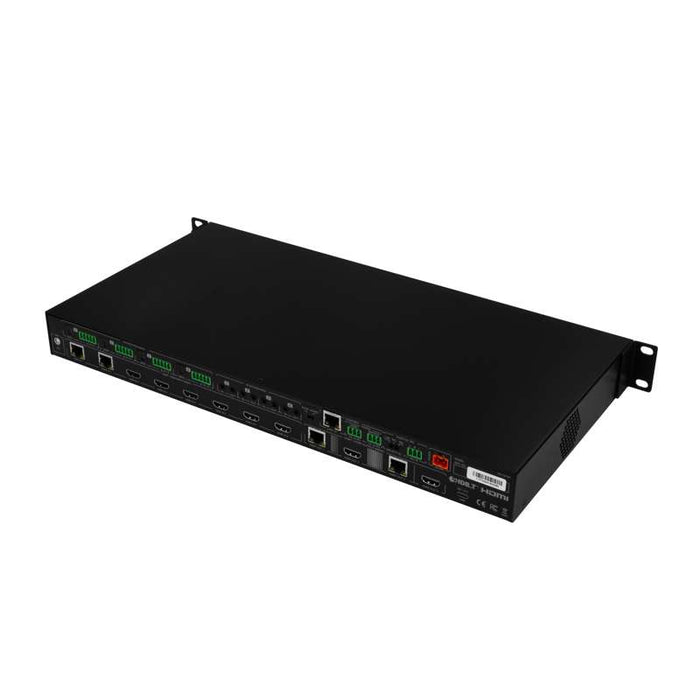

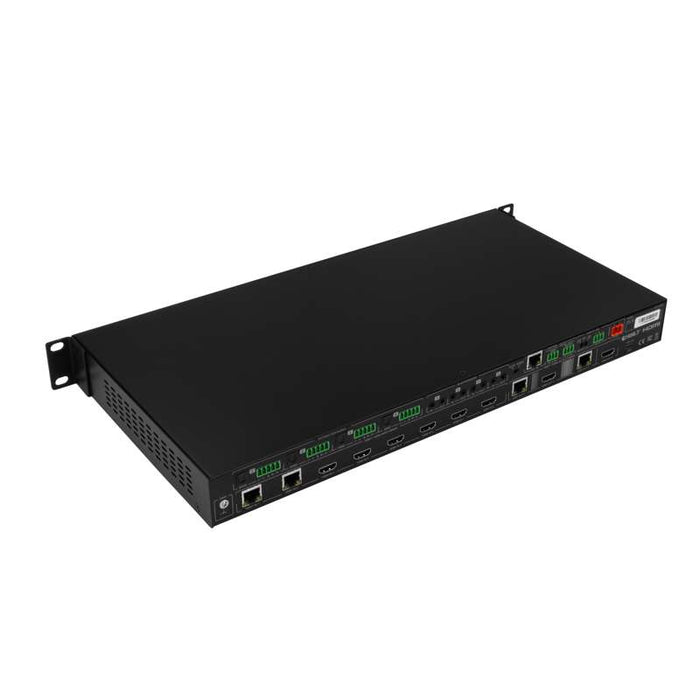

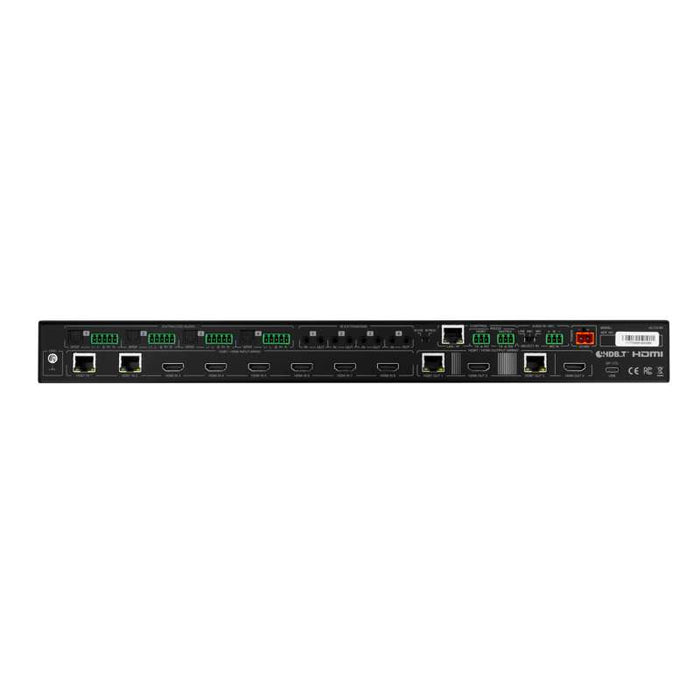

A perennial AVPro commercial workhorse, the ConferX AC-CX-84 receives an update with powerful new tech-driven features. Its eight inputs (two HDBaseT and six HDMI) can be simultaneously matrixed to four displays via two HDMI and two HDBaseT outputs. Switching between sources is now instant and delay‑free. Bidirectional RS-232 via HDBaseT I/O and a local diagnostics window add newfound transparency to signal traffic and control.
New scaling options include 720p, 1920x1200, 2560x1080p, and 3840x1080p ultrawide formats, ideal for DVLED walls and next‑gen displays. Automatic EDID detection removes compatibility conflicts, and Aspect Ratio Conversion ensures accurate scaling for 21:9 environments. HDMI 5‑volt toggling and HDMI Stream Control support modern CODEC devices by emulating Hot Plug Detect events and disabling scaling when no video is present.
Benefits
-
4K Ultra‑High Definition: Supports 4K/60 (4:4:4) 18Gbps signals with AVPro’s ICT technology.
-
Instant Switching: Seamless source transitions with no visual delay.
-
Advanced Scaling: Includes WUXGA, 21:9, and 32:9 scaling with automatic EDID detection.
-
Aspect Ratio Conversion: Warps or letterboxes/pillarboxes content to match display format.
-
HDBaseT RS‑232: Supports Base64 or ASCII/HEX formats with GUI diagnostics.
-
5‑Volt Toggle: Emulates hot‑plug events for conferencing CODEC compatibility.
-
HDMI Stream Control: Disables scaling when no active video is present.
-
Mirror Mode: Mirror HDMI and HDBaseT outputs when needed.
-
HDBaseT Interoperability: Fully compatible with all standard HDBaseT devices.
-
External Powering: Can power HDBaseT transmitters & receivers including:
- AC-CXWP-HDMO-T
- AC-CXWP-VGA-T
- AC-CXWP-USBC-T
- AC-EX70-444-TNE
- AC-EX70-444-RNE-P
- AC-EX70-SC2-R
