18Gbps 4x4 HDMI/HDBaseT Matrix Switch
Features
- 18Gbps Uncompressed Bandwidth Support on HDMI
- 18Gbps with ICT on HDBaseT outputs
- Audio Extraction, EDID management, IR, RS-232, and LAN control
- Built-in Scaling, Test Patterns and Audio Delay
Description

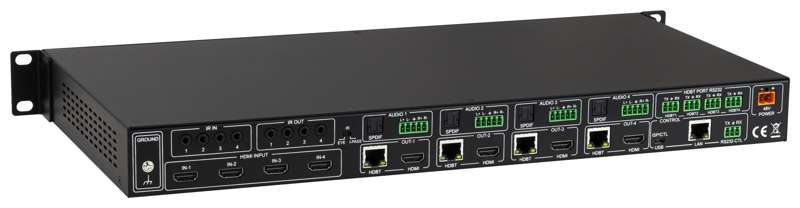

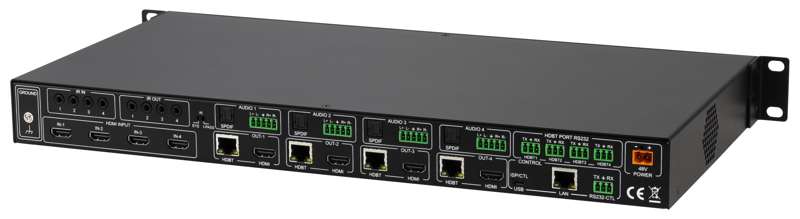

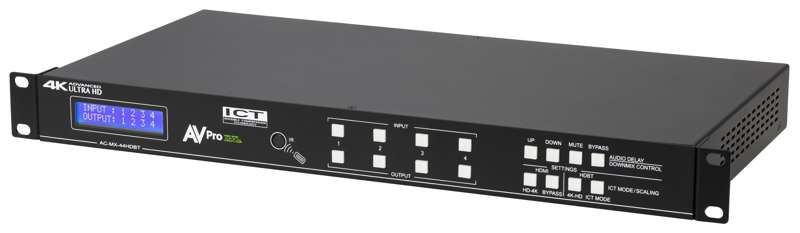

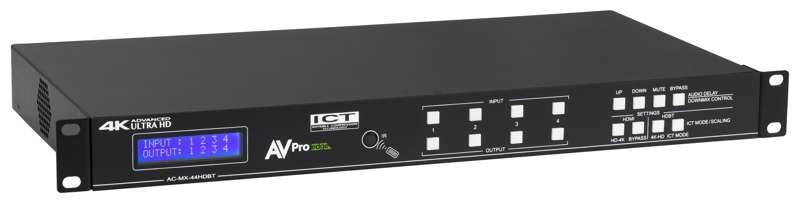

The AC-MX-44HDBT is a 4x4 HDMI/HDBaseT matrix switch featuring 4 HDMI inputs and 4 output blocks, each with mirrored HDMI and HDBaseT ports. With ICT-enabled HDBaseT, full 18Gbps signals can travel long distances through category cable. This matrix enables any source—Blu‑ray players, game consoles, PCs, satellite receivers—to route to any connected display.
Built‑in signal amplification and equalization support long HDMI cable runs without degradation. On‑board audio delay resolves lip‑sync issues, EDID management ensures compatibility across mixed display types, and integrated scaling allows 4K sources to remain usable even with older screens.
Benefits
-
Audio Extraction: 2‑channel PCM via balanced 5‑pin block; optical outputs support 7CH LPCM, Dolby Digital, DTS, and more.
-
Flexible Audio Routing: Bind-to-output, bind-to-input, or independent matrix-style routing.
-
Recommended Receivers:
- AC-EX70-444-RNE – 18Gbps & HDR up to 70m (100m @1080p)
- AC-EX70-UHD-R – Up to 4K60 4:2:0 (10.2Gbps) distances up to 40m/70m
