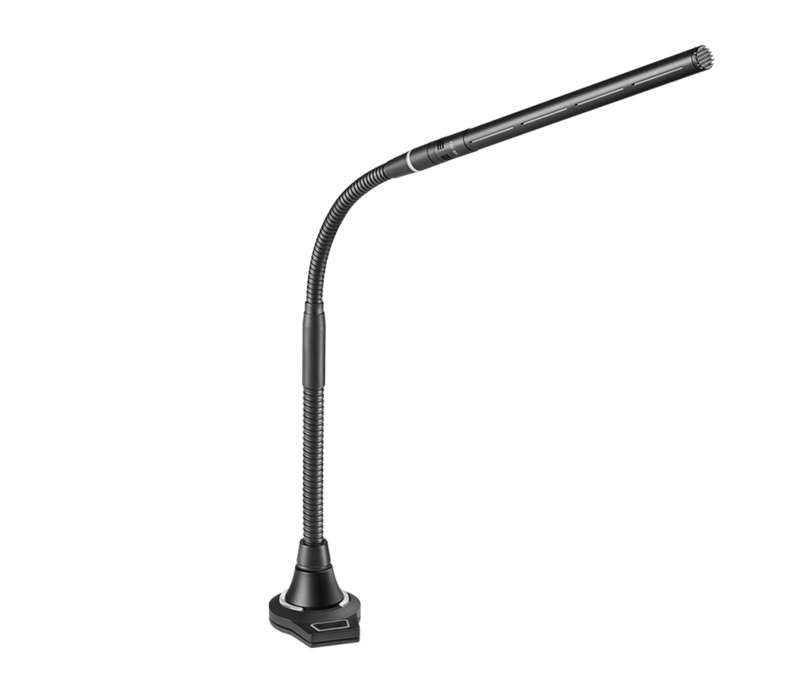

Audio‑Technica ES925ML12/FM5 MicroLine® Condenser Gooseneck Microphone with 5‑Pin Flush‑Mount Power Module, 231 mm (9.08") Gooseneck
- Modular condenser gooseneck microphone with 5‑pin flush‑mount power module
- MicroLine® polar pattern for highly focused speech pickup
- Touch‑sensitive capacitive switch with Logic I/O and RGB LED status indicator
- Interchangeable microphone elements, goosenecks, and power modules
- TAA‑compliant for government and enterprise installations
The ES925/FM5 is a professional modular microphone system designed for sound reinforcement, conferencing, and other commercial audio applications. This configuration features a 231 mm (9.08") gooseneck and a MicroLine® condenser element, delivering exceptional directionality and intelligibility in demanding environments.
Each component is interchangeable with other ES Modular Microphone components, allowing installers to mix and match power modules, gooseneck lengths, and polar patterns to create a customized solution for any installation.
Modular System Design
The ES925/FM5 supports a wide range of interchangeable components for maximum flexibility and long‑term scalability.
-
Power Modules: XLR, FM3, FM5, DS5
-
Gooseneck Lengths: 4.85", 9.08", 12.08", 15.08", 18.08", 21.08"
-
Polar Patterns: MicroLine®, cardioid, hypercardioid, omnidirectional

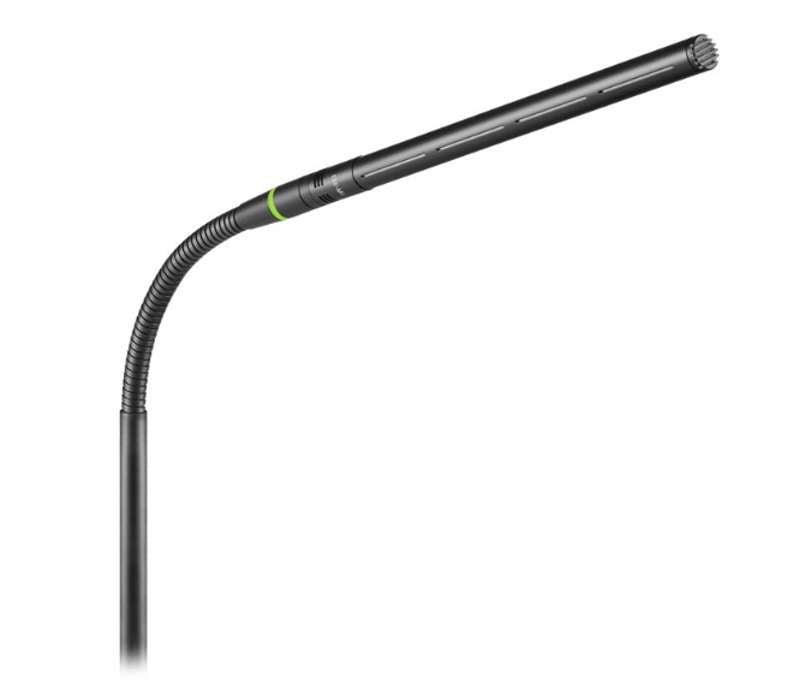

Gooseneck & Microphone Element
The small‑diameter gooseneck permits highly flexible positioning while maintaining a clean, low‑profile appearance. The MicroLine® polar pattern provides a narrow 90° angle of acceptance, delivering superior off‑axis rejection and maximum gain before feedback—ideal for boardrooms and podium applications.

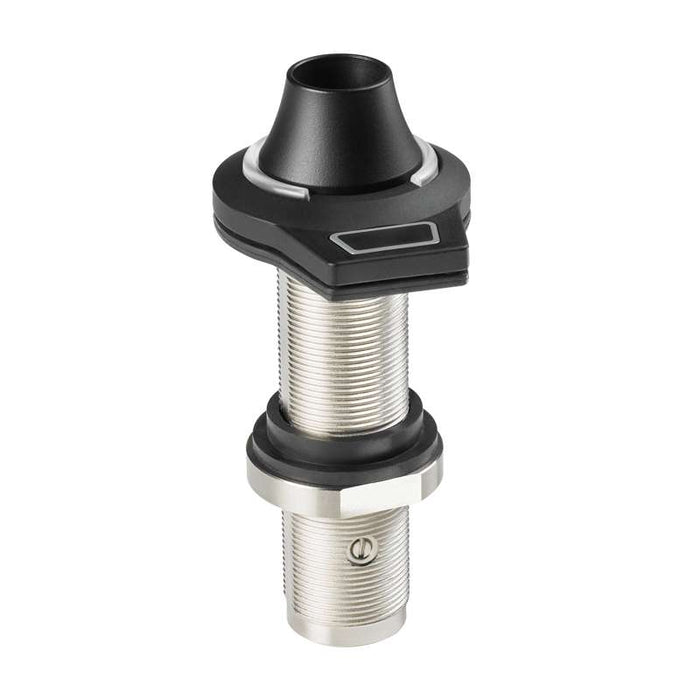

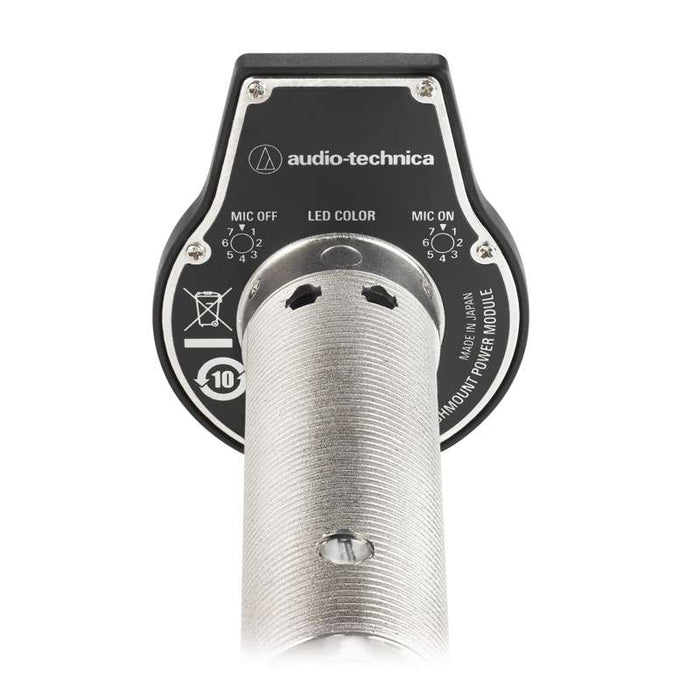

Flush‑Mount Power Module & Control
The FM5 flush‑mount power module installs unobtrusively into tabletops and features a touch‑sensitive capacitive switch with Logic I/O capability. This allows the microphone to trigger external devices such as PTZ cameras or lighting presets, enhancing control in conference and boardroom environments.

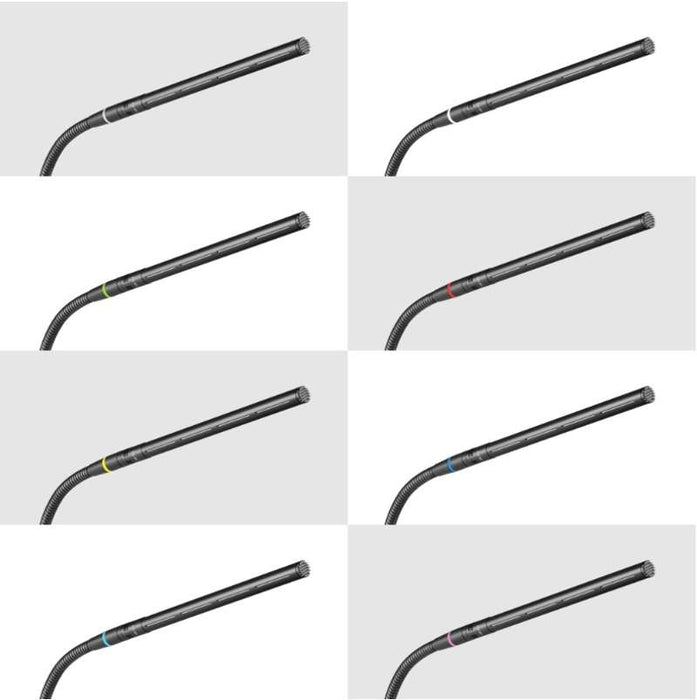

Both the power module and microphone element housing include a highly visible, two‑state RGB LED indicator for clear microphone status indication.
Audio Performance & Reliability
- Frequency response: 30 Hz – 20 kHz
- Dynamic range: 112 dB
- Maximum SPL: 140 dB
- Superior off‑axis rejection for maximum gain before feedback
Advanced Audio‑Technica Technologies
- UniGuard® RFI‑shielding technology for outstanding rejection of radio‑frequency interference
- Included isolators provide mechanical dampening of mounting surface vibration
- Interchangeable condenser elements deliver full‑range, natural sound
Connectivity & Power
- Integral 5‑pin XLRM‑type output connector
- Phantom power requirement: 22–52 V DC
- Current consumption: 7.6 mA

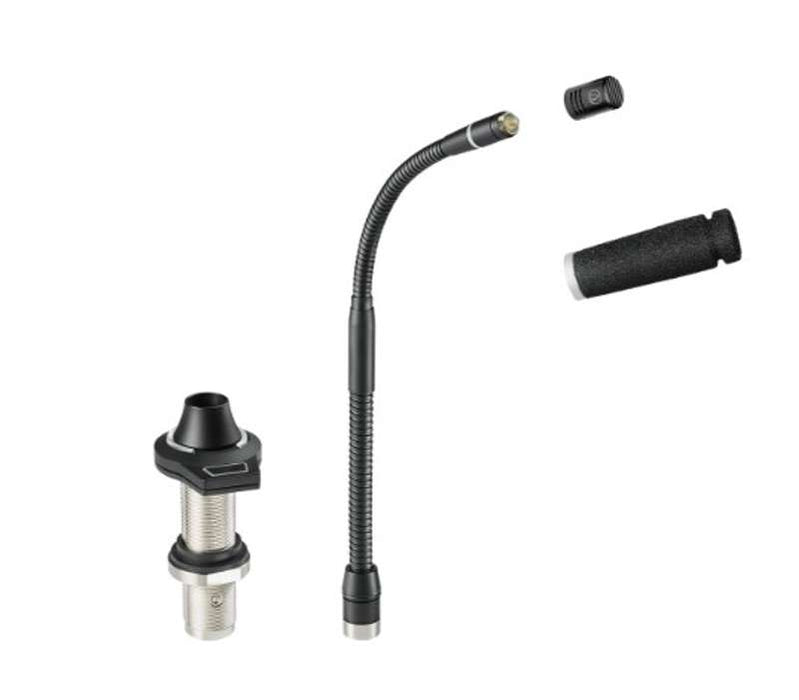

Included Accessories
- One pair of isolators
- AT8109a foam windscreen
- Nut and set screw (M2 × 2)
- Hex wrench
Ideal Applications
- Conference rooms and boardrooms
- Corporate and institutional meeting spaces
- Professional sound reinforcement systems
- Government and commercial installations
