Audio‑Technica ES925/FM5 Cardioid Condenser Gooseneck Microphone with 5‑Pin Flush‑Mount Power Module, 383 mm (15.08") Gooseneck
- Modular condenser gooseneck microphone with 5‑pin flush‑mount power module
- Cardioid polar pattern for focused speech pickup and reduced background noise
- Touch‑sensitive capacitive switch with Logic I/O and RGB LED status indicator
- Interchangeable microphone elements, goosenecks, and power modules
- TAA‑compliant for government and enterprise installations
The ES925/FM5 is a professional modular microphone system designed for sound reinforcement, conferencing, and other commercial audio applications. It includes a condenser microphone element, flexible gooseneck, and a 5‑pin flush‑mount power module that installs discreetly into tabletops and podiums.
Each component is interchangeable with other ES Modular Microphone components, allowing complete customization of power module type, gooseneck length, and polar pattern to meet the specific requirements of any installation.
Modular System Design
The ES925/FM5 supports a wide range of interchangeable components for maximum flexibility and long‑term scalability.
-
Power Modules: XLR, FM3, FM5, DS5
-
Gooseneck Lengths: 4.85", 9.08", 12.08", 15.08", 18.08", 21.08"
-
Polar Patterns: MicroLine®, cardioid, hypercardioid, omnidirectional
Gooseneck & Microphone Element
The small‑diameter gooseneck permits highly flexible positioning while maintaining a clean, low‑profile appearance. The cardioid polar pattern provides excellent off‑axis rejection and high gain before feedback, making it ideal for speech‑focused environments.

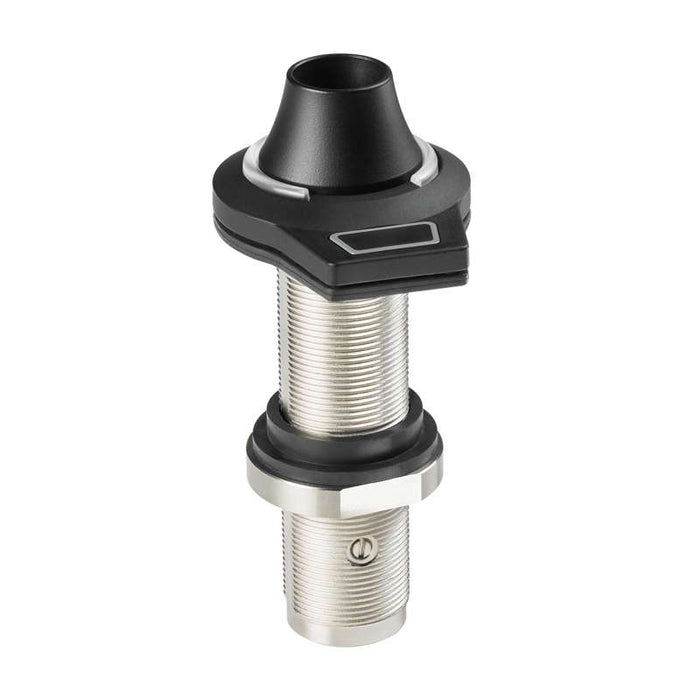

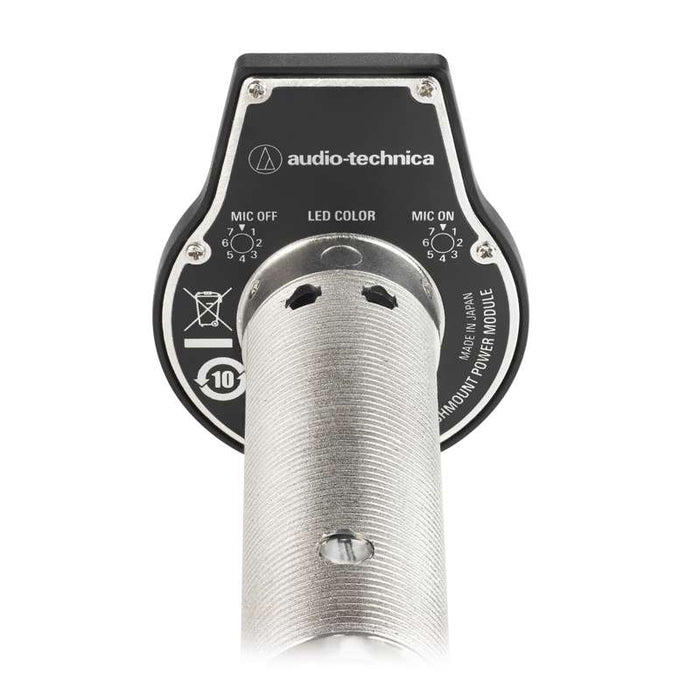

Flush‑Mount Power Module & Control

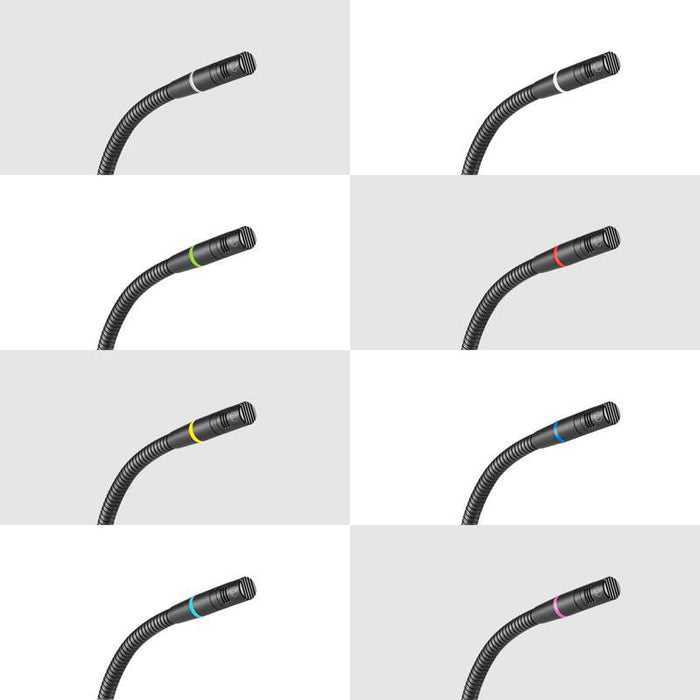

The FM5 flush‑mount power module features a touch‑sensitive capacitive switch with Logic I/O capability, allowing the microphone to trigger external devices such as PTZ cameras or lighting systems. Both the power module and microphone element housing feature a highly visible, two‑state RGB LED indicator for clear status indication.
Audio Performance & Reliability
- Frequency response: 30 Hz – 20 kHz
- Dynamic range: 112 dB
- Maximum SPL: 140 dB
- Superior off‑axis rejection for maximum gain before feedback
Advanced Audio‑Technica Technologies
- UniGuard® RFI‑shielding technology for outstanding rejection of radio‑frequency interference
- Included isolators provide mechanical dampening of surface vibration
- Interchangeable condenser elements deliver full‑range, natural sound
Connectivity & Power
- Integral 5‑pin XLRM‑type output connector
- Phantom power requirement: 22–52 V DC
- Current consumption: 7.6 mA
Included Accessories
- One pair of isolators
- AT8109a foam windscreen
- Nut and set screw (M2 × 2)
- Hex wrench
Ideal Applications
- Conference rooms and boardrooms
- Corporate and institutional meeting spaces
- Professional sound reinforcement systems
- Government and commercial installations
