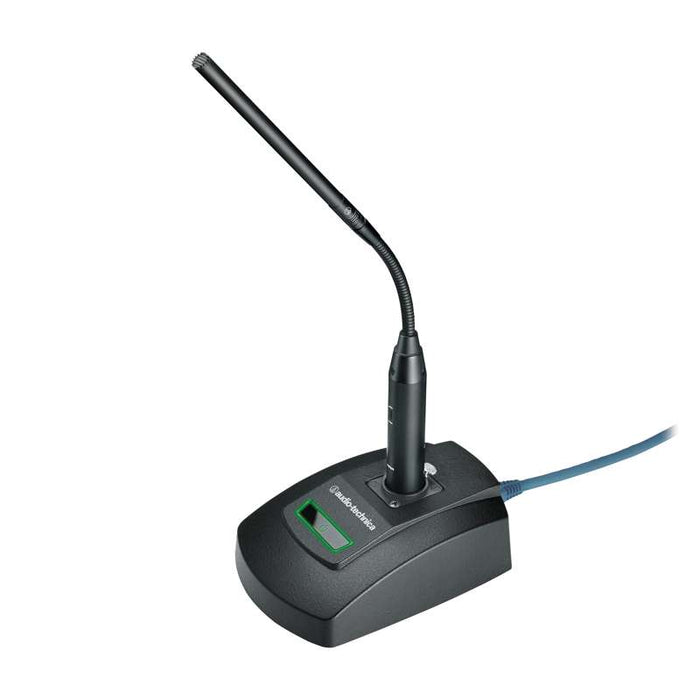

ATND8677a Microphone Desk Stand with Dante® Network Output
- Desktop microphone stand with Dante® network audio and control
- Compatible with any phantom‑powered condenser gooseneck microphone
- Integrated touch‑sensitive user switch with Red/Green LED indicator
- Powered via network PoE for simplified installation
- TAA‑compliant for government and enterprise environments
The ATND8677a microphone desk stand brings Audio‑Technica’s Dante networking innovation to tabletop applications, allowing audio and control data to be transmitted together over standard Ethernet. Designed for conferencing, distance learning, and high‑quality sound reinforcement, it enables seamless integration into modern networked AV systems.
Equipped with the same Dante user‑switch capabilities as the ATND971a boundary microphone, the ATND8677a allows direct control of Dante‑enabled devices at the push of a button. A simple Ethernet connection eliminates the need for expensive audio cabling or soldering, reducing installation time and complexity.
Desktop Design & Connectivity

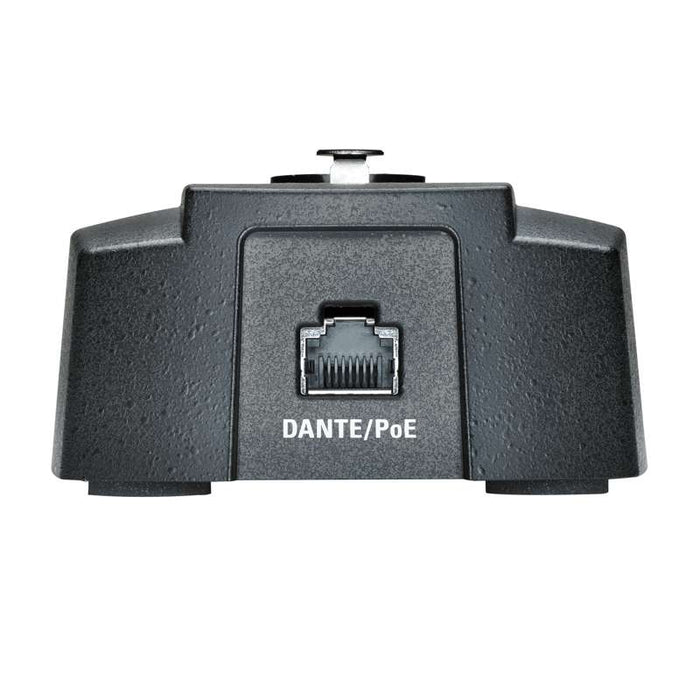

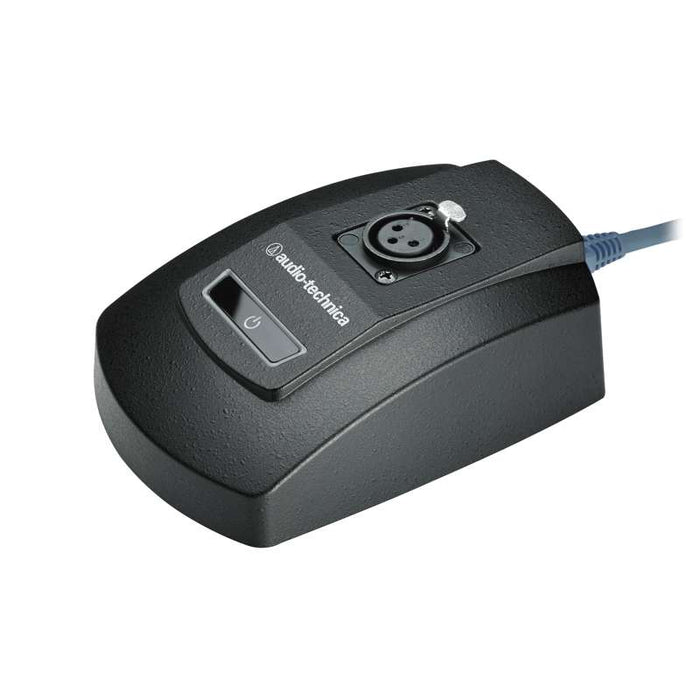

The sturdy, heavy‑duty metal base features a 3‑pin XLRF‑type input for quick mounting of phantom‑powered condenser gooseneck microphones and a Dante network output for direct Ethernet connectivity.
Programmable User Switch & LED Feedback
The touch‑sensitive capacitive user switch includes an integrated Red/Green LED status indicator and supports both Local and Remote operation modes.
-
Local Mode: Toggle mute/unmute, press‑to‑talk, or press‑to‑mute
-
Remote Mode: Trigger Dante‑enabled devices such as PTZ camera movements or lighting presets
Advanced Audio Control
- Integral 80 Hz UniSteep® low‑cut filter for improved speech clarity
- Three‑position input gain selector: +30 dB, +40 dB, +50 dB
- Switchable 12V DC phantom power for connected microphones
- Local or remote control of gain, filter, LED status, and phantom power
Network Compatibility & Security
The ATND8677a supports plug‑and‑play operation with AES67 networks, including Livewire, RAVENNA, and Q‑LAN AoIP technologies. Enhanced Dante Domain Manager functionality adds role‑based security, cross‑subnet routing, SNMP alerts, and other advanced network management features.
Installation & Build Quality
- Powered via network PoE
- Heavy die‑cast case for durability
- Non‑slip silicone foam bottom pads reduce surface vibration
- Ideal for boardrooms, conference rooms, and education environments
