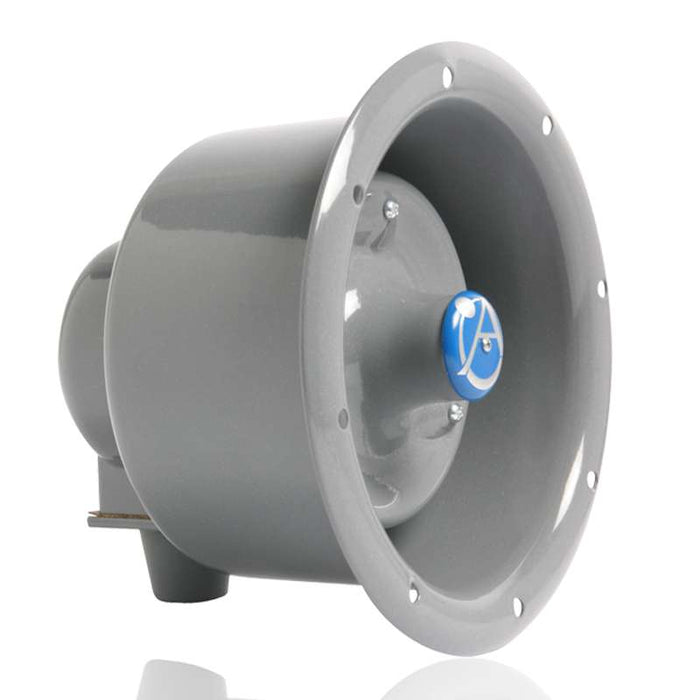

APF-15TUC Flanged Emergency Horn Speaker with 15-Watt 25V/70V Transformer and Line Supervision Capability
The APF-15TUC from the APF Series is a high-performance voice control horn speaker designed forclear, intelligible paging, intercom, emergency notification, and signaling applications. Equippedwith a high-efficiency compression driver, it delivers up to 15 watts of continuous power handlingwith exceptional speech clarity and sound projection, making it ideal for both indoor and outdoorenvironments.
- 15-watt high-efficiency compression driver for superior intelligibility
- Built-in 25V/70.7V Vari-Tap® transformer with 7-position wattage selection
- Line supervision capability with integrated 5 mfd capacitor
- Rugged all-metal, vandal-resistant construction
- Suitable for indoor and outdoor installations
- Flush, flange, or recessed mounting options
- Compatible with AtlasIED L20 Series grilles, enclosures, and mounting rings
- Field-replaceable self-aligning diaphragm
- Vandal-resistant terminal cover for conduit or cable installations
- UL 1480 listed for fire protective signaling systems
Designed for maximum flexibility, the APF-15TUC can be flush mounted or recessed into interioror exterior walls and ceilings. Recessed installations require only a 5.5-inch deep opening orrecessed enclosure. The speaker is compatible with AtlasIED L20 Series grilles, enclosures, andmounting rings, while optional MK-2 and FAMT-6 mounting kits provide additional installationoptions for use with 8-inch diameter baffles.
The integrated 25V/70.7V Vari-Tap® transformer features a convenient screwdriver-adjustable7-position wattage and impedance selection switch, allowing installers to quickly configure thespeaker for a variety of distributed audio systems. A self-aligning, field-replaceable diaphragmensures simplified maintenance and long-term reliability.
For enhanced system monitoring, the APF-15TUC includes a built-in 5 mfd capacitor for linesupervision applications. Wiring terminals are protected by a vandal-resistant adapter cover,making the speaker suitable for demanding installations where durability and security are essential.The enclosure is finished in a durable gray baked epoxy coating for long-lasting performance inchallenging environments.
Ideal Applications
The APF-15TUC is recommended for high-intelligibility paging, emergency communications,intercom systems, public address systems, and signaling applications in schools, transportationfacilities, commercial buildings, industrial sites, and other indoor or outdoor environments.
Specifications
-
Power Handling: 15 Watts Continuous
-
Transformer: Built-in 25V/70.7V Vari-Tap® Transformer
-
Frequency Response: 600Hz - 14kHz
-
Sensitivity: 104dB
-
Dispersion: 95°
-
Safety Listing: UL 1480 Listed
-
Line Supervision: Integrated 5 mfd Capacitor
-
Diameter: 5.625" (14.29 cm)
-
Depth: 5.187" (13.18 cm)
-
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
-
Shipping Weight: 5 lbs (2.27 kg)
-
Finish: Gray Baked Epoxy
