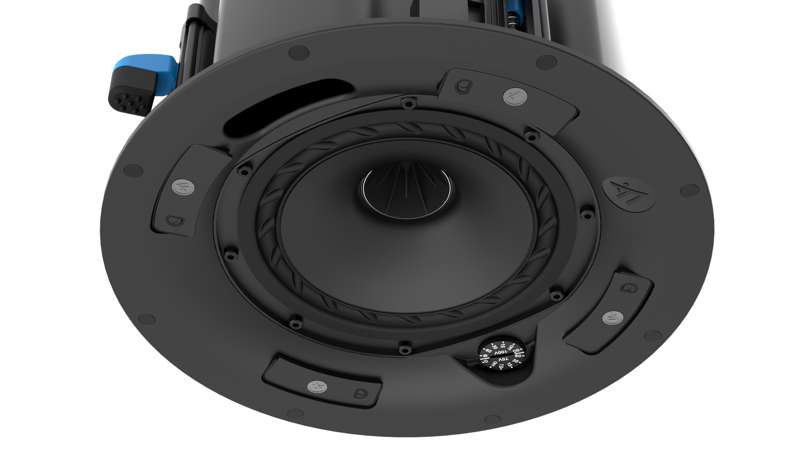

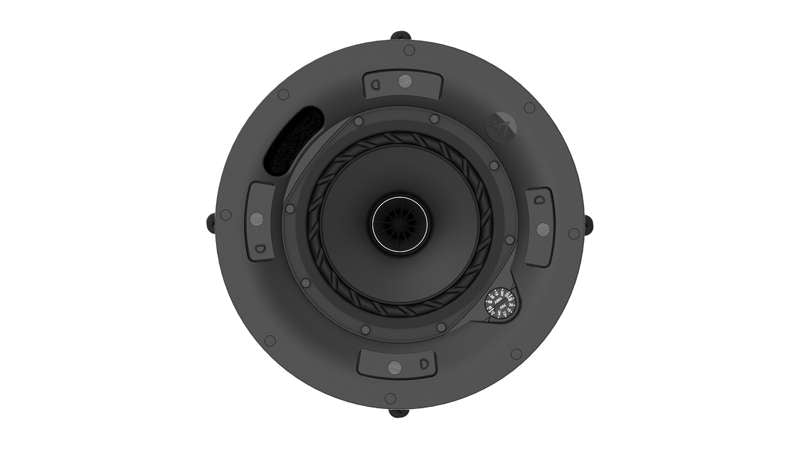

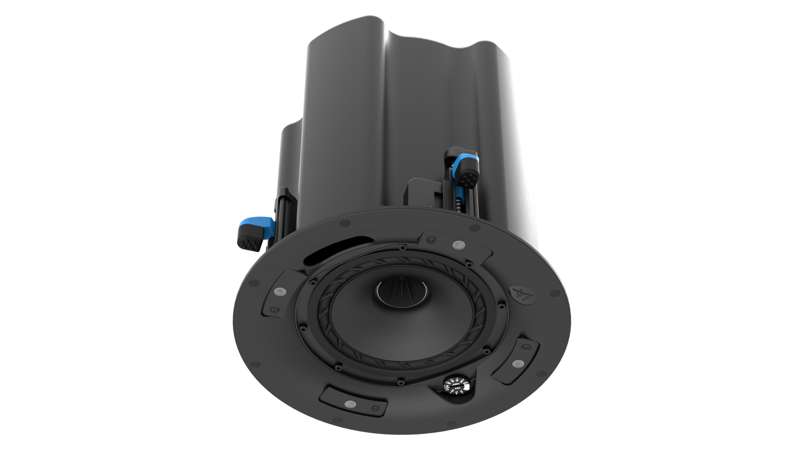

AtlasIED FC-6T 6-Inch Premium IsoFlare™ Ceiling Speaker (Blind Mount)
The AtlasIED FC-6T is a premium two-way full-range ceiling loudspeaker engineered for exceptional musical fidelity, speech intelligibility, and architectural integration. Featuring advanced IsoFlare™ point source technology, the FC-6T delivers highly consistent coverage, outstanding off-axis performance, and natural sound reproduction throughout the listening environment. Designed for prestigious commercial, corporate, hospitality, education, and high-end installation projects, the FC-6T establishes a new benchmark for premium ceiling loudspeaker performance.
- Premium IsoFlare™ point source driver technology
- Two-way full-range blind-mount ceiling loudspeaker
- 6-inch low-frequency driver with coaxially mounted high-frequency unit
- Ferrofluid-cooled titanium high-frequency driver
- Neodymium magnet HF system
- 60W low-loss 70V/100V transformer
- Low impedance (8Ω) operation support
- 100° nominal coverage pattern
- Frequency range: 50Hz to 20kHz (-10dB)
- 91dB system sensitivity
- Patented toolless high-travel mounting clamps
- Magnetically attached bezel-less grille
- Easy-access rotary tap selector switch
- Premium crossover components with air-core inductors and polypropylene capacitors
- Enhanced voicing presets available through AtlasIED Atmosphere
Premium IsoFlare™ Point Source Technology
The FC-6T incorporates AtlasIED's advanced IsoFlare™ point source driver architecture, developed through decades of acoustic and mechanical engineering expertise. Unlike conventional coaxial loudspeakers, IsoFlare technology provides superior harmonic alignment between the high-frequency and low-frequency sections, resulting in highly accurate sound reproduction and exceptional tonal balance.
This technology creates a coherent spherical wavefront that remains consistently aligned across all listening positions, producing an even frequency response and outstanding clarity throughout the coverage area.
Consistent Coverage and Superior Off-Axis Performance
The IsoFlare™ driver design delivers a constant time delay across the entire audible frequency spectrum, resulting in exceptionally smooth off-axis performance. This allows listeners to experience the same high-quality sound whether positioned directly beneath the loudspeaker or at the edge of the coverage zone.
With a nominal coverage angle of 100 degrees, the FC-6T provides broad and uniform sound distribution, making it ideal for premium commercial installations where coverage consistency is critical.
Designed for Music and Speech Applications
Combining high intelligibility with rich musical reproduction, the FC-6T is equally effective for background music, foreground music, paging, speech reinforcement, conferencing, and presentation systems. Its balanced frequency response and natural sonic character make it suitable for environments where superior audio quality is a key project requirement.
For installations requiring additional low-frequency impact, the FC-6T can be paired with the AtlasIED FC-8ST ceiling subwoofer to create a full-range premium ceiling audio solution.
Advanced High-Frequency Performance
The loudspeaker utilizes a ferrofluid-cooled titanium high-frequency driver coupled with a lightweight neodymium magnet system. This combination delivers exceptional detail, improved power handling, and extended high-frequency response while maintaining low distortion even at higher output levels.
The result is crisp vocal articulation, outstanding detail retrieval, and smooth high-frequency performance across a wide listening area.
Optimized Low-Frequency Reproduction
The FC-6T features a weather-treated multi-fiber cone specifically engineered to balance rigidity and controlled high-frequency roll-off. This design produces highly accurate midrange reproduction while maintaining excellent low-frequency performance and long-term reliability.
The speaker also incorporates advanced Fluted Surround Technology, which minimizes energy reflections back into the cone that could otherwise introduce coloration and compromise audio clarity.
Smooth Transition Baffle Design
The enclosure utilizes an optimized transition baffle without sharp edges, significantly reducing acoustic diffraction effects. By minimizing unwanted reflections around the loudspeaker, the FC-6T achieves smoother frequency response and more consistent coverage characteristics.
This refined acoustic design contributes to the loudspeaker's natural, transparent sound signature.
Premium Crossover Network
High-current crossover components, including air-core inductors and premium polypropylene capacitors, ensure precise frequency division between the high-frequency and low-frequency drivers. This sophisticated crossover design preserves signal integrity and contributes to the loudspeaker's highly detailed and accurate sonic performance.
Flexible 70V/100V and Low-Impedance Operation
The integrated full-bandwidth transformer delivers exceptionally low insertion loss while providing flexible installation options for distributed audio systems. Installers can quickly select the appropriate output setting using the convenient easy-access rotary selector switch.
- 60W transformer tap
- 30W transformer tap
- 15W transformer tap
- 7.5W tap (70V operation)
- 8-ohm low impedance operation
This flexibility allows the FC-6T to integrate seamlessly into both distributed and low-impedance sound systems.
Architectural-Friendly Installation
The FC-6T incorporates a patented toolless high-travel secure-clamp mounting mechanism that significantly reduces installation time while ensuring reliable, secure attachment in ceiling environments. The blind-mount design further simplifies installation and provides a clean finished appearance.
This installer-friendly approach makes the loudspeaker ideal for both new construction and retrofit projects.
Bezel-Less Magnetic Grille
A magnetically secured bezel-less grille delivers a sleek architectural appearance while simplifying maintenance and installation. The removable logo and grille design also allow for easy painting in a single step without requiring special adapters or accessories.
This provides maximum flexibility for architects and designers seeking seamless integration into modern commercial interiors.
AtlasIED Atmosphere Integration
Enhanced voicing presets are available through the AtlasIED Atmosphere platform, allowing system designers and integrators to further optimize loudspeaker performance for specific environments and applications.
This integration helps ensure consistent audio quality while simplifying system tuning and deployment.
Technical Specifications
- Speaker Type: Two-Way Full-Range Ceiling Loudspeaker (Blind Mount)
- Driver Technology: IsoFlare™ Point Source
- Frequency Range (-10dB): 50Hz – 20kHz
- Frequency Response (±3dB): 62Hz – 19kHz
- System Sensitivity: 91dB (1W @ 1m)
- Coverage Angle: 100°
- Directivity Index: 5.6dB
- Average Power Handling: 80W
- Program Power Handling: 160W
- Peak Power Handling: 320W
- Recommended Amplifier Power: 160W @ 8 Ohms
- Nominal Impedance: 8 Ohms
- Transformer Taps: 60W, 30W, 15W, 7.5W (70V), and Low-Z Operation
- Maximum SPL (Average): 110dB
- Maximum SPL (Peak): 116dB
- Maximum SPL with Transformer (Average): 109dB
Ideal Applications
The AtlasIED FC-6T is ideally suited for premium corporate environments, executive boardrooms, hospitality venues, upscale retail spaces, conference centers, educational institutions, houses of worship, and luxury commercial installations where exceptional audio quality, consistent coverage, and refined aesthetics are essential requirements.
