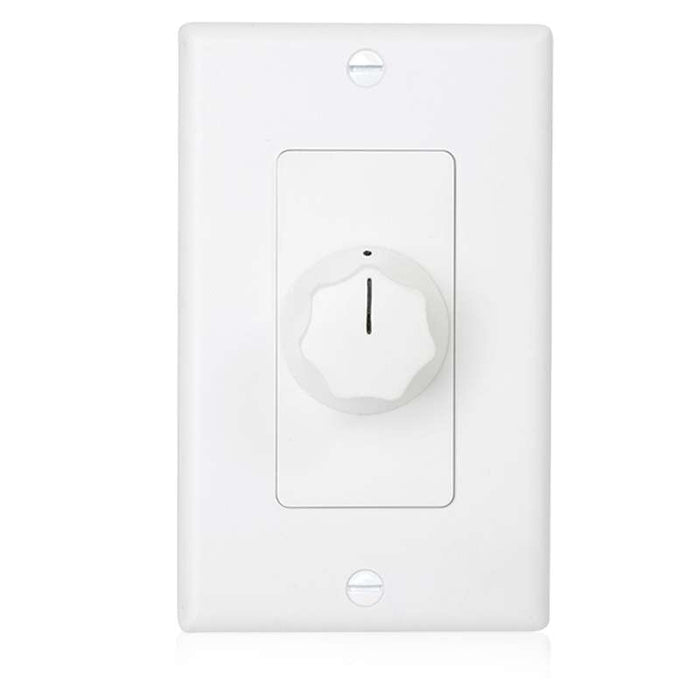

Atlas Sound Deluxe Decora Plate Mounted 70.7V 35W Attenuator, 3dB Steps

AT35D Deluxe Decora Plate Mounted 70.7V 35W Attenuator

The AT35D Deluxe Decora Plate Mounted Attenuator is a high-quality auto transformer volume control designed for use in25V and 70.7V distributed audio systems. It delivers excellent frequency response, low insertion loss, and reliable performance forcommercial and professional audio installations. The attenuator provides smooth volume adjustment through ten make-before-break steps,plus a positive off position for safe and dependable operation.

Key Features

• Designed for 25V and 70.7V audio systems.
• 35-watt power handling capacity.
• Ten attenuation steps with positive off position.
• Make-before-break switching design helps prevent audio interruption.
• No stop between maximum and off position to reduce switch damage.
• Silver-plated contacts for quiet, noise-free operation.
• Removable terminal block for simplified installation and wiring.
• Attractive Decora-style design for professional indoor installations.
• Fits most standard 1-gang electrical outlet boxes.
• Includes both white and ivory plates with matching skirted knobs.

Applications

• Commercial background music systems
• Paging and public address systems
• Schools and educational facilities
• Retail stores and shopping centers
• Restaurants, hotels, and hospitality venues
• Office and conference room audio systems

Specifications

• Model: AT35D
• Type: Deluxe Decora Plate Mounted Attenuator
• Voltage Compatibility: 25V / 70.7V Systems
• Power Rating: 35W
• Total Attenuation: 27dB
• Attenuation Steps: 10 Steps + Off Position
• Plate Style: Decora
• Plate Size: 1-Gang
• Plate Colors: White and Ivory
• Height: 4.5 in (11.43 cm)
• Width: 2.75 in (6.99 cm)
• Depth: 2.13 in (5.40 cm)
• Shipping Weight: 1.20 lb (0.54 kg)

What's Included

• AT35D 35W Attenuator
• White Decora-style plate
• Ivory Decora-style plate
• Matching skirted control knobs
• Removable terminal block
