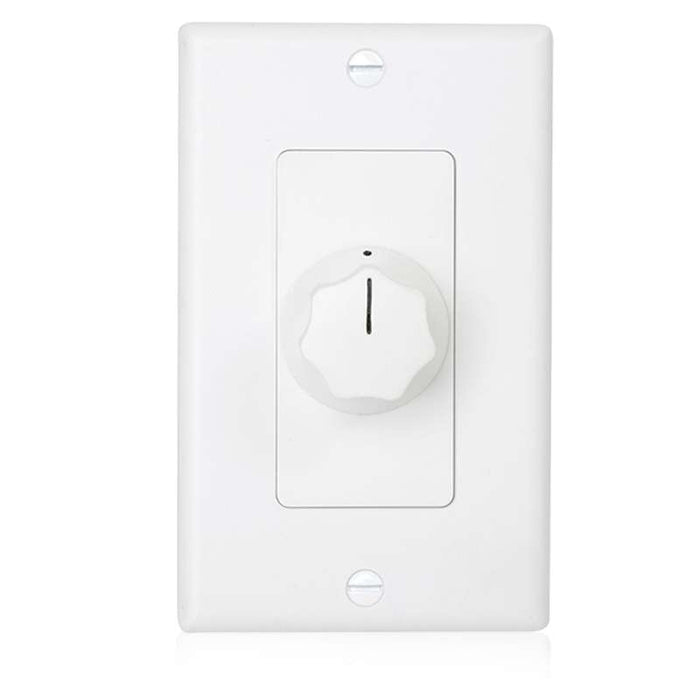

AT100D Deluxe Decora Plate Mounted 70.7V 100-Watt Attenuator with 3dB Steps
The AtlasIED AT100D is a premium Decora-style volume control attenuator designed for25V and 70.7V distributed audio systems. Combining reliable performance with an attractive,residential-style appearance, the AT100D offers precise volume adjustment, excellent frequencyresponse, and low insertion loss for commercial paging and background music applications.
- 100-watt power handling capacity for commercial audio systems
- Compatible with both 25V and 70.7V distributed speaker systems
- Ten make-before-break attenuation steps with positive off position
- 3dB attenuation increments for precise volume adjustment
- Excellent frequency response and low insertion loss
- Silver-plated contacts for smooth, noise-free operation
- Removable terminal block for easy installation and maintenance
- Fits most standard 1-gang electrical outlet boxes
- Includes both white and ivory Decora-style wall plates
- Matching skirted knobs provide a clean, professional appearance
Designed as an attractive alternative to traditional commercial attenuators, the AT100D blendsseamlessly into modern interiors while delivering dependable audio performance. Its high-qualityauto-transformer design ensures minimal signal loss and consistent audio quality in distributedsound systems, making it ideal for commercial, educational, hospitality, and office environments.
The attenuator provides ten make-before-break attenuation steps plus a positive off position,allowing users to adjust volume smoothly without interrupting audio transmission. The switchdesign eliminates a stop between maximum volume and the off position, helping prevent switchdamage and extending operational life.

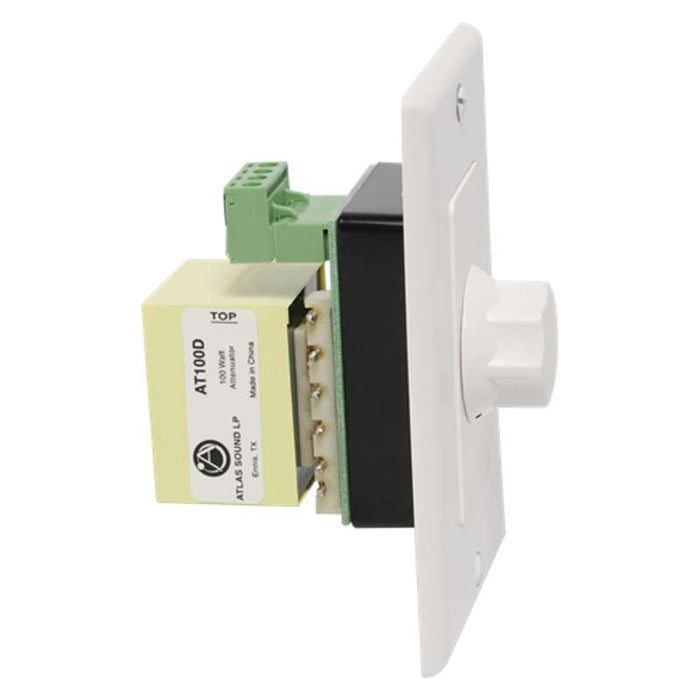

Silver-plated contacts enhance reliability and ensure quiet, noise-free operation throughout yearsof use. The removable terminal block simplifies wiring and service, while the compact designallows installation in most standard single-gang electrical boxes.
For added flexibility, the AT100D ships complete with both white and ivory Decora-style wallplates and matching skirted knobs, enabling installers to match the unit to a variety of interiordesign styles and finishes.
Ideal Applications
The AT100D is ideal for offices, schools, hotels, restaurants, retail stores, healthcare facilities,conference rooms, worship facilities, and other commercial environments requiring local volumecontrol with an attractive architectural appearance.
Specifications
-
Product Type: Decora-Style Commercial Attenuator
-
Power Rating: 100 Watts
-
System Compatibility: 25V and 70.7V Audio Systems
-
Attenuation: 10 Steps Plus Positive Off
-
Attenuation Increment: 3dB per Step
-
Total Attenuation: 27dB
-
Plate Type: Decora
-
Plate Colors Included: White and Ivory
-
Plate Size: Single Gang
-
Terminal Type: Removable Terminal Block
-
Height: 4.5" (11.43 cm)
-
Width: 2.75" (6.99 cm)
-
Depth: 2.5" (6.35 cm)
-
Shipping Weight: 1.5 lbs (0.68 kg)
