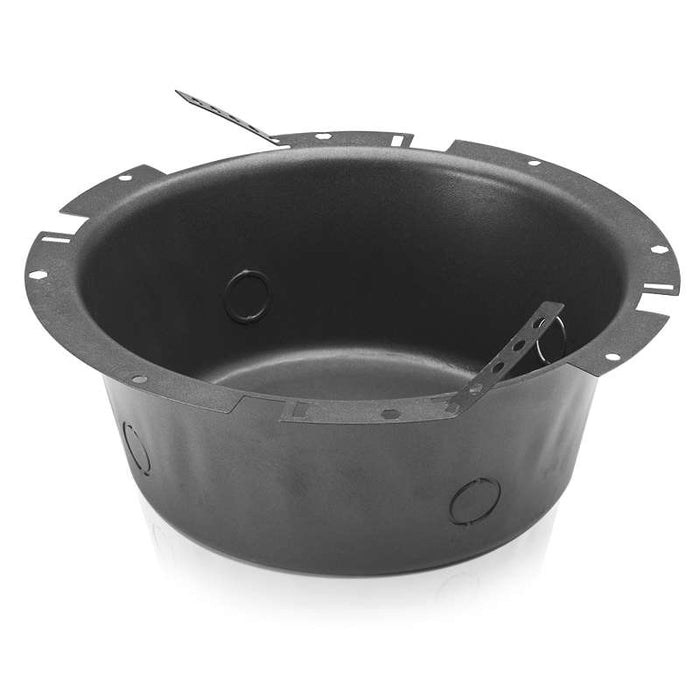

AtlasIED CS95-8 8-Inch Recessed Round Stacking Enclosure
The AtlasIED CS95-8 is a cost-effective recessed round speaker enclosure designed for commercial audio installations requiring dependable performance, efficient storage, and simplified installation. Its unique conical stacking design allows multiple enclosures to nest together, significantly reducing storage space requirements and transportation costs for contractors, distributors, and integrators.
- Designed for 8-inch ceiling speaker installations
- Space-saving stackable enclosure design
- Ideal for commercial paging and background music systems
- Compatible with AtlasIED SD72W, SD72WV, and GD87W speaker packages
- Durable one-piece cold-rolled steel (CRS) construction
- Undercoated and patch-jute lined for improved acoustic performance
- Epoxy-coated finish for durability and corrosion resistance
- Includes four combination 1/2" to 3/4" conduit knockouts
- Includes four J-clips and two perforated mounting straps
- UL 1480 and UL 2043 listed
Space-Saving Stackable Design
The CS95-8 features an innovative conical enclosure shape that allows multiple units to nest together during storage and transportation. This unique stacking design helps contractors and installers maximize warehouse space while reducing shipping and handling costs.
The enclosure is particularly beneficial for large-scale installations where multiple speaker enclosures are required and storage efficiency is an important consideration.
Designed for Commercial Audio Applications
Engineered for a wide variety of commercial sound installations, the CS95-8 provides a reliable enclosure solution for background music, paging, public address, and general-purpose distributed audio systems.
Its recessed design helps improve audio system performance while providing a clean and professional ceiling installation appearance.
Robust Steel Construction
The enclosure is constructed from a single piece of cold-rolled steel (CRS) for strength and durability. The interior is undercoated and lined with patch-jute material to help improve acoustic performance and reduce unwanted enclosure resonance.
A protective epoxy finish enhances long-term durability and helps resist corrosion in demanding commercial environments.
Flexible Installation Features
To simplify installation, the CS95-8 includes four combination conduit knockouts that accommodate both 1/2-inch and 3/4-inch conduit connections. The enclosure also ships complete with four J-clips and two flexible perforated mounting straps for secure attachment in suspended ceiling systems.
These installer-friendly features help reduce installation time while supporting a wide variety of ceiling configurations.
Compatible AtlasIED Speaker Systems
The CS95-8 is specifically designed for use with selected AtlasIED speaker packages and provides an ideal enclosure solution for several popular commercial audio models.
- AtlasIED SD72W speaker package
- AtlasIED SD72WV speaker package
- AtlasIED GD87W high-performance 8-inch coaxial speaker package
The enclosure is not designed for use with speaker packages incorporating pre-mounted high-performance transformers such as the HT-167 or HT-327 transformer assemblies.
Compatible Baffle Models
The CS95-8 supports a wide range of AtlasIED baffle options, offering flexibility for system designers and integrators.
- 51-8
- 60-8W
- 61-8W
- 62-8
- 63-8
- 67-8
- 67-8W
- G22-8
- M222
- M222W
- P900
- VP60-R
Certified for Commercial Installations
The CS95-8 meets important safety and performance requirements for commercial audio installations. Its UL listings provide assurance of compliance for professional specification and installation projects.
- UL 1480 Listed
- UL 2043 Listed
Technical Specifications
- Type: Recessed Round Stacking Enclosure
- Compatible Speaker Size: 8 Inches
- Construction: One-Piece Cold-Rolled Steel (CRS)
- Finish: Epoxy Coated
- Interior Treatment: Undercoated and Patch-Jute Lined
- Depth: 4.25 Inches (10.80 cm)
- Diameter: 11.75 Inches (29.85 cm)
- Shipping Weight: 2.33 lbs (1.06 kg)
- Conduit Knockouts: Four Combination 1/2"–3/4" Knockouts
- Included Hardware: Four J-Clips and Two Flexible Perforated Mounting Straps
- Safety Listings: UL 1480 and UL 2043
Ideal Applications
The AtlasIED CS95-8 is ideal for offices, schools, retail stores, healthcare facilities, hospitality venues, public buildings, and other commercial environments requiring reliable recessed loudspeaker installations. Its durable construction, stackable design, and compatibility with a broad range of AtlasIED speaker systems make it a practical and economical enclosure solution for professional audio projects.
