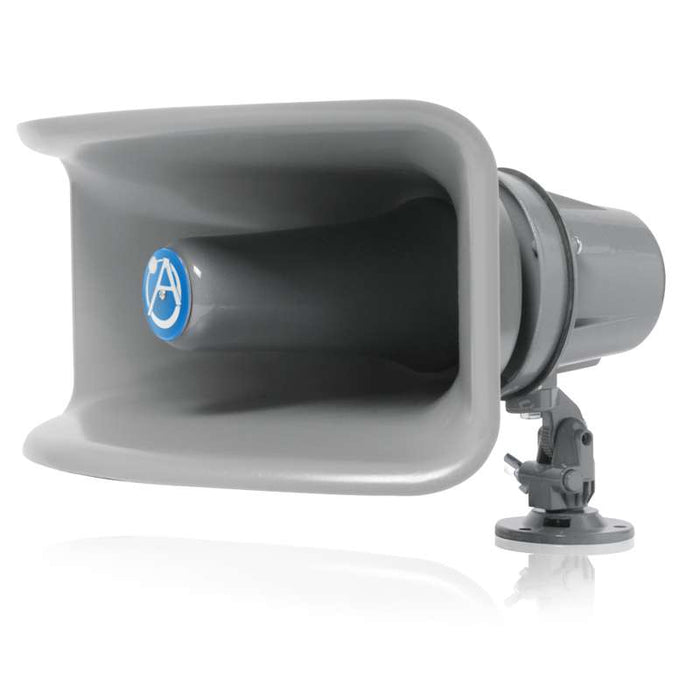

AtlasIED APC-30T Wide Angle Horn Speaker with 30-Watt 25V/70V/100V Transformer
The AtlasIED APC-30T is a high-power wide-angle horn speaker engineered for highly intelligible voice communication, tone signaling, paging, intercom, and emergency notification applications. Featuring a powerful compression driver, wide-dispersion horn design, and multi-voltage transformer support, the APC-30T delivers outstanding speech clarity and reliable performance in both indoor and outdoor commercial, industrial, and institutional environments.
- 30-watt high-power horn loudspeaker
- Wide-angle sound dispersion pattern for broad coverage
- Integrated 25V, 70.7V, and 100V transformer
- 45-ohm tap for intercom and talk-back applications
- High-output compression driver for superior speech intelligibility
- 70° x 95° dispersion pattern
- Frequency response of 300Hz to 12kHz
- 109dB sensitivity for long-distance sound projection
- Multiple selectable power taps
- Omni-Purpose® mounting bracket included
- Vertical and horizontal mounting flexibility
- Suitable for surface, pillar, and I-beam mounting
- Durable baked epoxy finish
- Designed for indoor and outdoor applications
High-Power Voice and Signaling Performance
The APC-30T is built around a high-efficiency compression driver designed to project clear, intelligible voice announcements and signaling tones over long distances. Its powerful acoustic output makes it an ideal solution for commercial paging systems, public address systems, warehouses, manufacturing facilities, transportation hubs, schools, and emergency communication applications.
With a power rating of 30 watts and an impressive sensitivity of 109dB, the APC-30T provides the output capability required for challenging environments where clear communication is essential.
Wide-Angle Coverage Pattern
The horn incorporates a specially engineered molded plastic bell that provides controlled sound directivity while maintaining broad area coverage. Its 70° x 95° dispersion pattern allows sound to be distributed efficiently across larger spaces, reducing the number of loudspeakers required within a system.
The wide horizontal coverage pattern makes the APC-30T particularly effective for corridors, warehouses, loading areas, parking facilities, industrial sites, and large open spaces where uniform sound distribution is critical.
Multi-Voltage Transformer Flexibility
An integrated multi-tap transformer supports operation on 25V, 70.7V, and 100V distributed audio systems, making the APC-30T compatible with a wide range of commercial sound installations. A convenient screwdriver-adjustable selector simplifies tap selection during installation and commissioning.
- 2W tap @ 70.7V
- 3.8W tap @ 70.7V
- 7.5W tap @ 70.7V
- 15W tap @ 70.7V
- 30W tap @ 70.7V
- 45-ohm tap for intercom and talk-back systems
The addition of the 45-ohm tap provides enhanced compatibility with communication and intercom applications requiring specialized impedance matching.
Extended Low-Frequency Response
Unlike many conventional paging horns, the APC-30T offers extended low-frequency performance for improved voice naturalness and stronger tone reproduction. The speaker's operating frequency range of 300Hz to 12kHz ensures excellent speech intelligibility while preserving critical vocal frequencies.
This balanced response enhances communication effectiveness and makes announcements easier to understand in noisy environments.
Versatile Omni-Purpose® Mounting System
The APC-30T features AtlasIED's proven Omni-Purpose® mounting bracket, providing exceptional installation flexibility. The bracket allows fast adjustment between vertical and horizontal positions using a simple one-step adjustment process.
Installers can mount the speaker on walls, structural columns, pillars, beams, and other surfaces without requiring specialized hardware, making it ideal for a broad range of commercial and industrial installations.
Durable Construction for Demanding Environments
Constructed with a molded plastic horn and finished in a durable gray baked epoxy coating, the APC-30T is built to withstand demanding operating conditions. Its rugged design ensures reliable long-term performance in both indoor and outdoor environments.
The speaker also supports operation across a wide temperature range, helping maintain dependable performance in challenging climates and industrial settings.
Wide Range of Applications
The APC-30T is ideal for voice paging, safety announcements, intercom communications, emergency notification systems, industrial plants, transportation facilities, educational campuses, warehouses, factories, parking structures, and outdoor public address systems where intelligibility and coverage are critical requirements.
Technical Specifications
- Speaker Type: Wide-Angle Horn Loudspeaker
- Power Rating: 30 Watts
- Frequency Response: 300Hz – 12kHz
- Sensitivity: 109dB
- Dispersion Pattern: 70° x 95°
- Transformer Type: Multi-Tap 25V / 70.7V / 100V
- Power Taps: 2W, 3.8W, 7.5W, 15W, 30W @ 70.7V
- Special Impedance Tap: 45 Ohms for Intercom and Talk-Back Applications
- Mounting: Omni-Purpose® Adjustable Mounting Bracket
- Height: 8.25 Inches (20.96 cm)
- Width: 14.38 Inches (36.51 cm)
- Depth: 12.88 Inches (32.70 cm)
- Shipping Weight: 9.0 lbs (4.08 kg)
- Finish Color: Pantone 430 C / RAL 7000 Gray
- Operating Temperature Range: -40°C to 70°C
Ideal Applications
The AtlasIED APC-30T is ideally suited for schools, manufacturing facilities, warehouses, transportation terminals, parking structures, industrial plants, outdoor public address systems, emergency notification systems, security communication networks, and commercial paging installations requiring powerful, reliable, and highly intelligible audio coverage.
