8" AS Series Surface Mount Speaker
The AtlasIED AS-8T is a premium two-way, full-range surface-mount loudspeaker engineered to deliver exceptional audio performance in both foreground and background music applications. Designed for environments where durability, aesthetics, and sound quality are critical, the AS-8T offers an outstanding performance-to-size ratio for commercial, hospitality, educational, corporate, and outdoor installations.

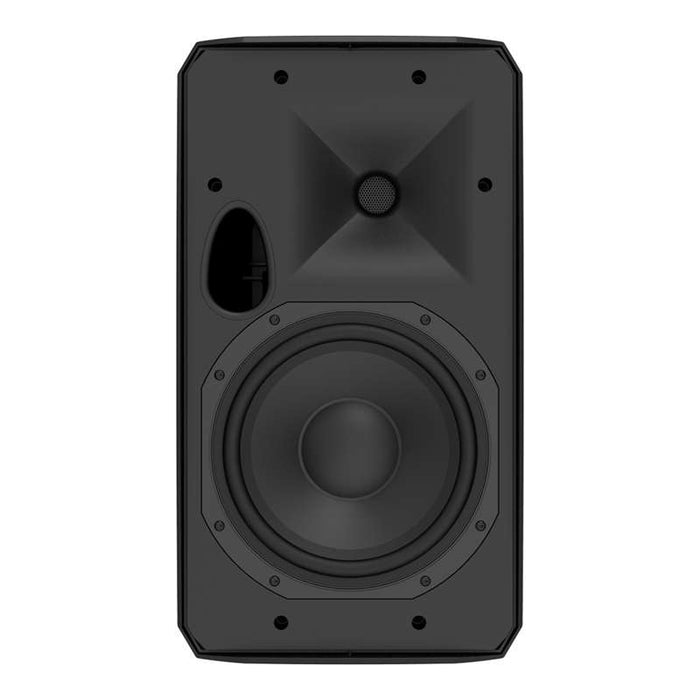

Featuring a high-excursion, weather-treated 8-inch woofer paired with a precision 1-inch compression driver, the AS-8T delivers smooth, accurate, and consistent broadband frequency response with excellent coverage characteristics both on-axis and off-axis. Its clean, modern design blends seamlessly into architecturally sensitive spaces while providing powerful, intelligible sound reproduction.
Built for long-term reliability, the loudspeaker utilizes a high-impact ABS enclosure with UV protection and an IP55 weather-resistant rating, making it suitable for both indoor and outdoor environments. Installation is simplified with the included slip-free yoke mount, optional pan-and-tilt bracket, and compatibility with industry-standard VESA mounting systems.

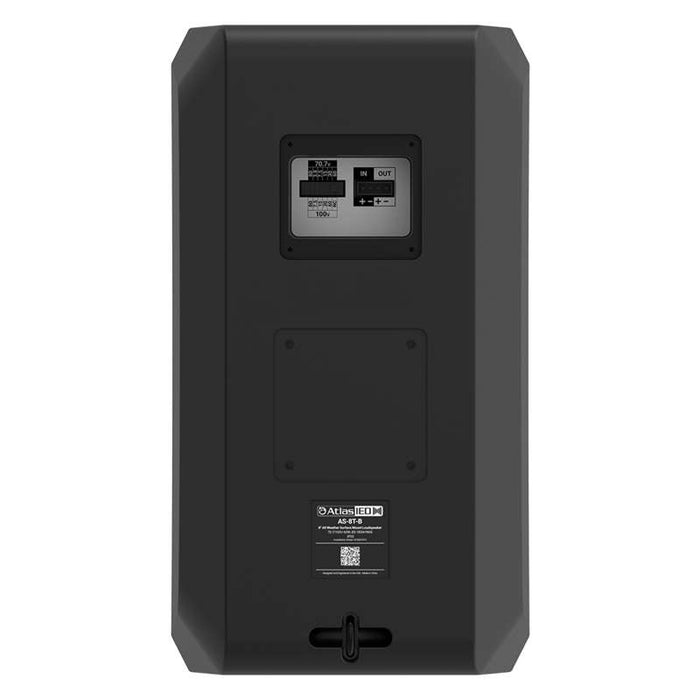

The integrated low-insertion-loss 60W transformer supports both 70V and 100V distributed audio systems, while a rear-mounted slide selector switch allows quick configuration of transformer taps or low-impedance operation.
Key Features
- High-performance two-way surface mount loudspeaker for foreground and background music applications.
- Weather-treated 8" high-excursion woofer with 1" compression driver for superior clarity and coverage.
- Minimalist industrial design suitable for architecturally sensitive environments.
- Exceptional horizontal off-axis performance for consistent audience coverage.
- 60W ultra-low insertion loss transformer for high-performance distributed audio systems.
- Supports 70V, 100V, and low-impedance audio systems.
- Durable high-impact ABS enclosure with integrated UV inhibitor.
- IP55-rated weather-resistant construction for indoor and outdoor installations.

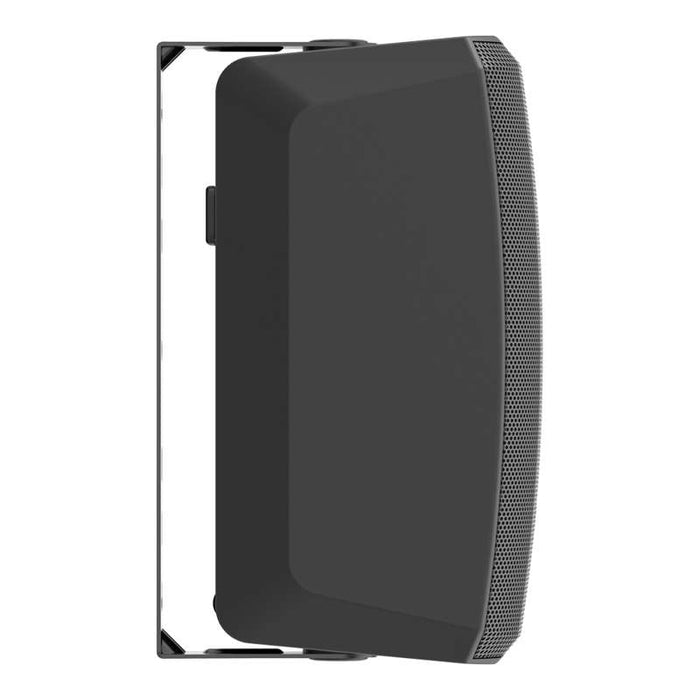

- Includes slip-free yoke mounting bracket for secure installation.
- Optional pan-and-tilt bracket available.

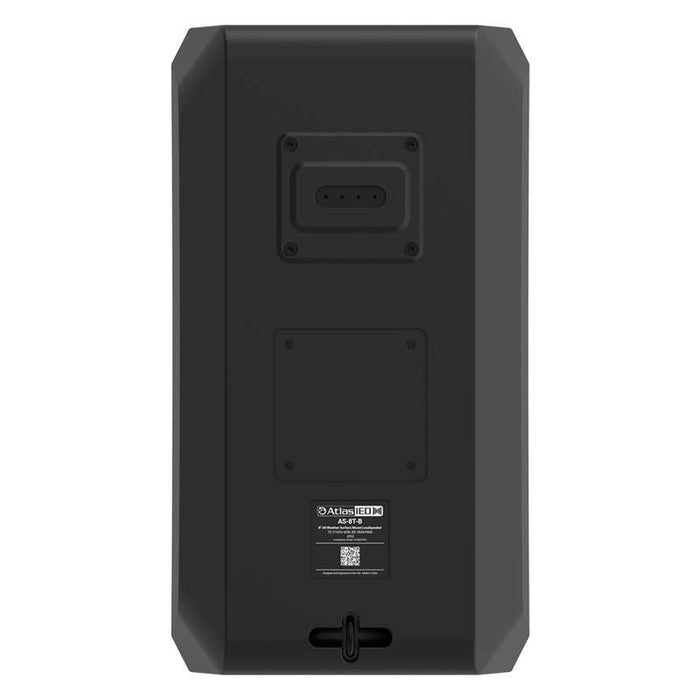

- Compatible with standard VESA mounting systems.
- Advanced DSP tunings available through the AtlasIED Atmosphere platform.
- Available in textured black or white finishes.
Applications
Ideal for retail spaces, restaurants, hospitality venues, educational facilities, corporate environments, houses of worship, outdoor patios, public spaces, and other commercial installations requiring high-quality distributed audio.
Technical Specifications
-
Speaker Type: Two-Way, Full-Range Surface Mount Loudspeaker
-
Frequency Range (-10 dB): 49 Hz - 20 kHz
-
Frequency Response (+/-3 dB): 70 Hz - 18 kHz
-
Sensitivity (1W @ 1m): 90 dB
-
Nominal Coverage: 100° x 90° (H x V)
-
Directivity Index: 8.2 dB
-
Nominal Impedance: 8 Ohms (Minimum 8.1 Ohms)
Power Handling
-
Average Power: 180W
-
Program Power: 360W
-
Peak Power: 720W
-
Recommended Amplifier Power: 360W @ 8 Ohms
Maximum SPL
-
Average SPL: 113 dB
-
Peak SPL: 119 dB
-
Average SPL at Maximum Transformer Tap: 108 dB
Transformer Taps
- 60W
- 30W
- 15W
- 7.5W
- 3.8W (70V only)
- Low Impedance (Low-Z) Operation
Physical Specifications
-
Dimensions (H x W x D): 17.15" x 9.5" x 9.3" (435.6 x 241.3 x 236.2 mm)
-
Weight: 23.9 lbs (10.84 kg)
