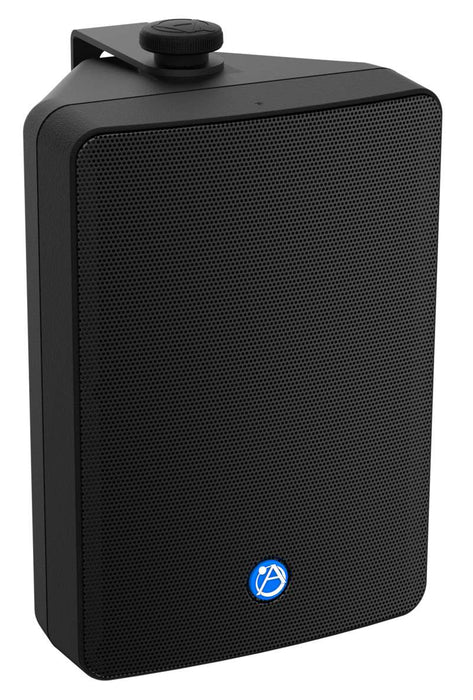

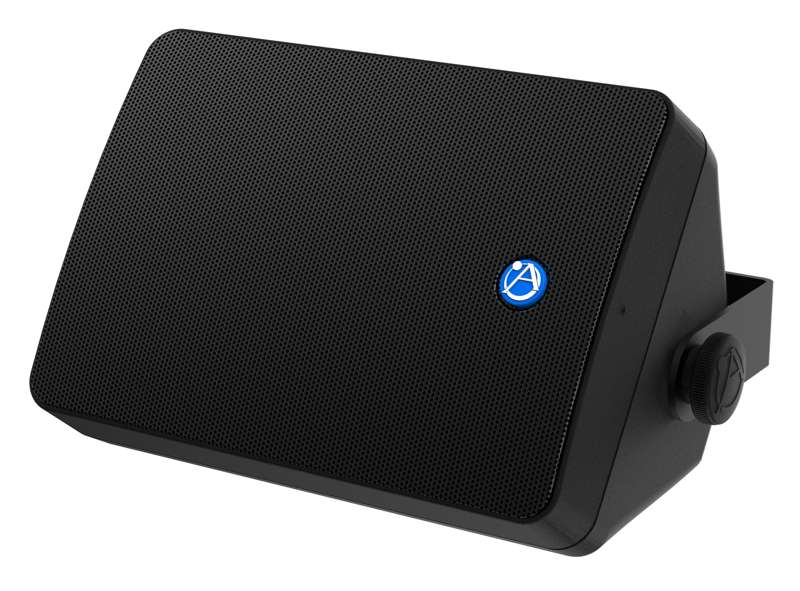

6.5" 2-Way All-Weather Surface Mount Speaker with 32W 70V/100V Transformer
The AtlasIED SM63T is a high-performance all-weather surface mount loudspeaker designed to deliver exceptional sound quality, installation flexibility, and long-term durability in both indoor and outdoor environments. Ideal for commercial audio systems, hospitality venues, educational facilities, retail spaces, houses of worship, and public areas, the SM63T combines premium components with rugged weather-resistant construction.
Engineered with a highly efficient 6.5-inch polypropylene woofer and a Ferrofluid-cooled 1-inch titanium dome tweeter, the SM63T delivers clear, intelligible speech and balanced musical reproduction across a wide frequency range. AtlasIED's advanced TRX Control WaveGuide technology provides smooth and consistent 120° x 120° coverage, ensuring excellent audio performance throughout the listening area.
For distributed audio applications, the speaker includes an internally mounted 32W 70V/100V transformer with selectable power taps and an 8-ohm bypass option. The transformer tap settings are easily adjusted via a rear-mounted sealed switch, allowing quick adaptation to a variety of system requirements.
Built to withstand harsh weather conditions, the SM63T features a UV-resistant, talc-impregnated polypropylene enclosure, powder-coated aluminum grille, and corrosion-resistant brass hardware. The included heavy-duty C-bracket enables flexible horizontal or vertical mounting, while additional mounting options support OMNIMOUNT® and microphone stand installations.
Key Features
- High-performance 2-way surface mount loudspeaker for indoor and outdoor applications.
- Highly efficient 6.5" polypropylene woofer for powerful low-frequency performance.
- 1" Ferrofluid-cooled titanium dome tweeter for smooth, detailed high-frequency reproduction.
- TRX Control WaveGuide technology provides consistent 120° x 120° sound dispersion.
- Built-in 32W transformer supports 70V and 100V distributed audio systems.
- Selectable power taps: 4W, 8W, 16W, 32W, and 8Ω bypass.
- AtlasIED POLYGUARD™ protection circuitry safeguards the high-frequency driver from damaging transients.
- Weather-resistant construction for year-round indoor and outdoor use.
- UV-resistant, talc-infused polypropylene enclosure.
- Powder-coated aluminum grille and corrosion-resistant brass hardware.
- 100-hour salt spray tested per ASTM B117 for durability in challenging environments.
- Heavy-duty color-matched C-bracket included for flexible mounting.
- Compatible with OMNIMOUNT® mounting systems.
- Integrated 5/8"-27 threaded mount for microphone stand applications.
- Paintable enclosure to match architectural requirements.
- Available in black or white finishes.
- UL 1480A certified for safety and performance.
- Backed by a 5-Year Manufacturer Warranty.
Ideal Applications
Perfect for restaurants, hotels, retail stores, schools, corporate facilities, houses of worship, outdoor patios, sports facilities, public venues, transportation hubs, and distributed audio installations requiring dependable all-weather performance.
Technical Specifications
-
Speaker Type: Surface Mount Loudspeaker
-
Configuration: Two-Way System
-
Sensitivity: 88 dB
-
Frequency Response: 104 Hz - 20 kHz
-
Coverage Pattern: 120° Horizontal x 120° Vertical
Transformer Taps
- 4W
- 8W
- 16W
- 32W
- 8 Ohm Bypass
Construction & Durability
- Weather-resistant injection-molded polypropylene enclosure.
- UV-resistant talc-impregnated cabinet material.
- Powder-coated aluminum grille.
- All-brass hardware inserts.
- Moisture-protected input connection compartment.
- 100-hour ASTM B117 salt spray tested.
- Suitable for year-round indoor and outdoor use.
Physical Specifications
-
Height: 10.27" (26.09 cm)
-
Width: 7.24" (18.39 cm)
-
Depth: 6.68" (16.97 cm)
-
Shipping Weight: 6.55 lbs (2.97 kg)
-
Safety Certification: UL 1480A Listed
