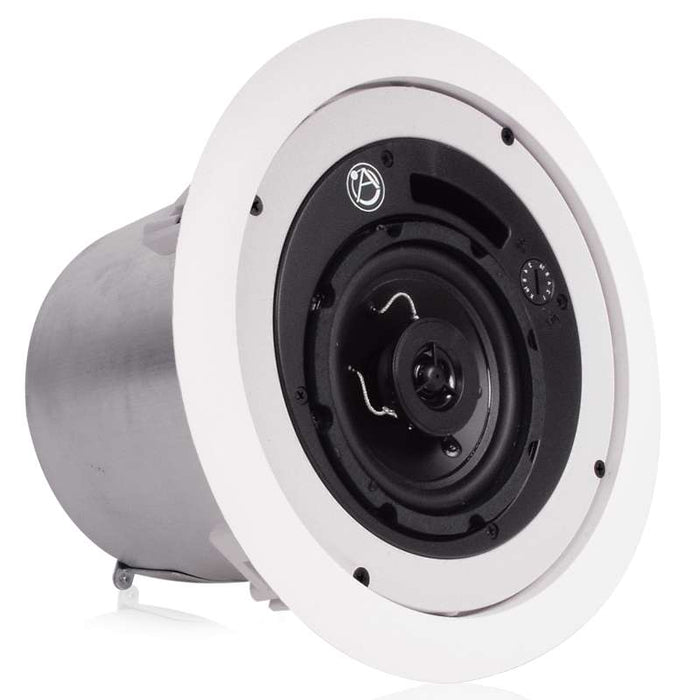

4" Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure
Key Features
- High-performance 4" coaxial in-ceiling loudspeaker with integrated enclosure.
- Wide 130° dispersion for consistent coverage and fewer speaker locations.
- Built-in 70V/100V transformer with multiple power tap selections.
- Transformer bypass setting supports direct 8-ohm operation.
- Optimally tuned 285 cubic inch ported steel enclosure for enhanced low-frequency response.
- Front-mounted tap selector allows quick system adjustments after installation.
- Detachable 4-pole Phoenix-style connector for simplified pre-wiring and daisy-chaining.
- Easy installation using included C-ring, V-rail tile bridge, and dog-leg mounting system.

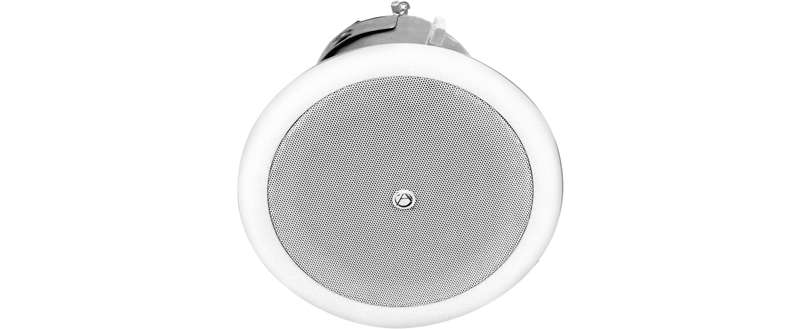

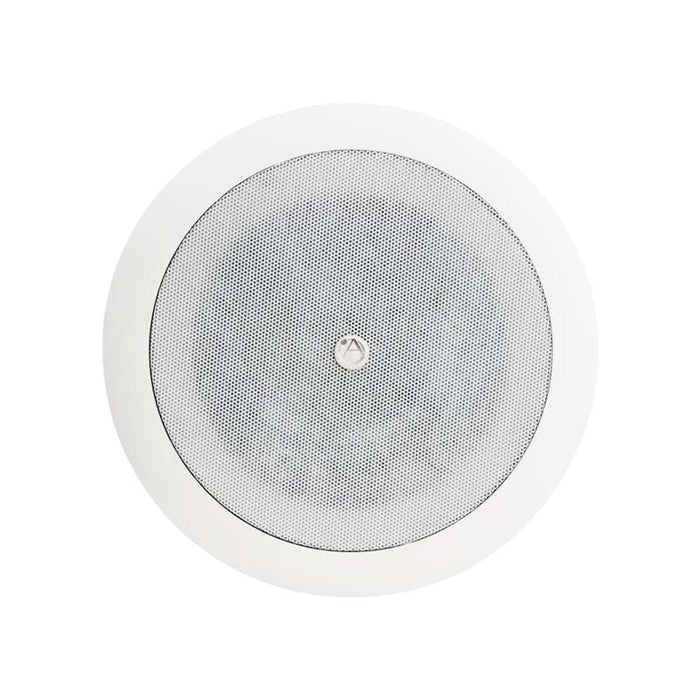

- Press-fit grille delivers a clean, low-profile architectural appearance.
- Compatible with AtlasIED FAPSUB subwoofer systems for enhanced bass performance.
- Designed for voice, music, paging, and signal distribution applications.
- UL 1480 listed for commercial audio installations.
Overview
The AtlasIED FAP42T is a premium full-range coaxial in-ceiling loudspeaker engineered to deliver exceptional speech intelligibility, musical performance, and installation flexibility in commercial audio environments. Featuring wide 130° dispersion, a low-profile enclosure, and an integrated transformer for distributed audio systems, the FAP42T provides high-fidelity sound reproduction while blending seamlessly into modern architectural spaces.
Designed for commercial, industrial, educational, hospitality, healthcare, and institutional applications, the FAP42T combines superior coaxial speaker technology with a precisely tuned ported enclosure to achieve extended low-frequency performance and consistent coverage. Its wide dispersion pattern makes it an ideal solution for spaces with low ceilings, maximizing coverage while minimizing the number of speakers required.
The integrated 70V/100V transformer supports distributed audio installations with minimal insertion loss and excellent low-frequency response. A front-mounted tap selector simplifies system configuration and allows selection of transformer taps or direct 8-ohm operation without removing the speaker.
Installation
Installation is fast and efficient thanks to the included C-ring, V-rail tile bridge, and dog-leg mounting system. The detachable 4-pole Phoenix-style connector enables easy pre-wiring and convenient daisy-chaining of additional speakers or subwoofers, reducing installation time and simplifying system expansion. A press-fit grille completes the clean, professional appearance required in modern commercial interiors.
Ideal Applications
The FAP42T is ideal for offices, retail stores, restaurants, hospitality venues, educational facilities, healthcare environments, conference rooms, houses of worship, transportation facilities, and public spaces where high-quality background music, paging, and speech reinforcement are required.
Technical Specifications
Speaker Type: Coaxial In-Ceiling Loudspeaker
Sensitivity: 88 dB Average
Frequency Response: 75 Hz - 20 kHz
Coverage Angle: 130° Dispersion
Power Configuration
The integrated transformer supports multiple power settings for distributed audio systems, including 1W, 2W, 4W, 8W, and 16W taps, along with an 8-ohm bypass mode for direct low-impedance operation.
Physical Specifications
Overall Diameter: 10.5" (26.67 cm)
Enclosure Type: Optimally Tuned Ported Steel Back Can
Safety Certification: UL 1480 Listed
