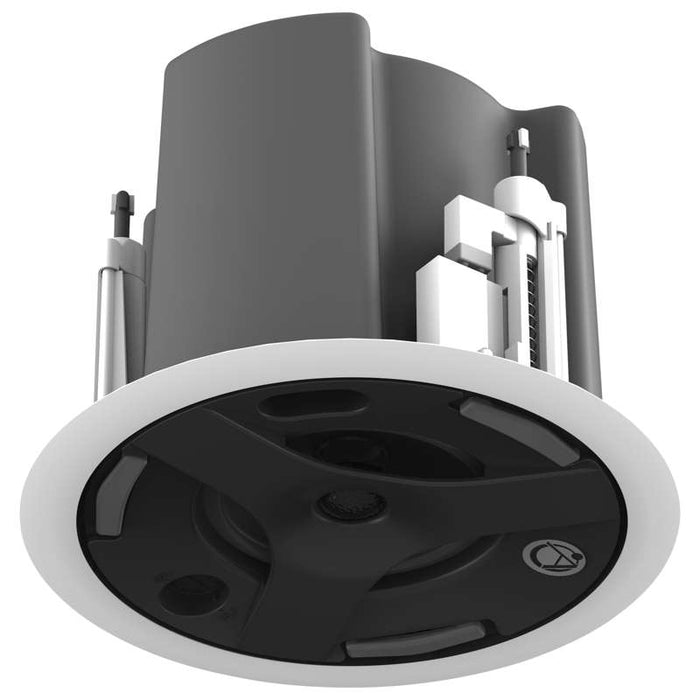

FAP43T-W 4.5" Coaxial In-Ceiling Speaker with 32-Watt 70V/100V Transformer, Ported Enclosure, and Safety First Mounting System
The AtlasIED FAP43T-W Strategy III in-ceiling speaker delivers exceptional speech intelligibility,natural music reproduction, and fast installation in a compact, cost-effective design. Featuring a4.5-inch coaxial loudspeaker, integrated 70V/100V transformer, optimized ported enclosure, andthe innovative Safety First Mounting System (SFMS), the FAP43T-W is an ideal solution forcommercial audio installations requiring broad coverage and consistent sound performance.
- 4.5" coaxial speaker with high-quality music and speech reproduction
- Built-in 70V/100V transformer with selectable power taps up to 32 watts
- Wide 130° dispersion for uniform audio coverage
- Safety First Mounting System (SFMS) reduces installation time by up to 60%
- Tool-free mounting design with integrated front-mounted T-handles
- Optimized ported enclosure for enhanced low-frequency performance and bass response
- Improved waveguide and bridge-mounted tweeter for wider audience coverage
- 4-pole detachable Phoenix-style connector for easy pre-wiring and daisy chaining
- Front-access 70V tap selector for quick power adjustments
- UL1480A and UL2043 safety listed
Designed for modern commercial audio environments, the FAP43T-W provides clear voicereproduction and detailed music playback in retail stores, restaurants, hospitality venues,recreational facilities, convention centers, casinos, and corporate environments. The improvedwaveguide design delivers wider coverage than previous generations, helping reduce the numberof speakers required while maintaining consistent sound throughout the listening area.
To improve low-frequency performance, AtlasIED optimized the enclosure's tuning port to deliverdeeper bass response and improved overall sound quality. The result is a fuller, more engaginglistening experience that enhances customer satisfaction in public spaces where background musicand paging announcements are critical.
The patent-pending Safety First Mounting System (SFMS) was engineered to eliminate commoninstallation issues associated with traditional ceiling speakers. Integrated front-mounted T-handlesallow installers to securely tighten mounting tabs without tools, helping prevent damage caused byover-tightening. The system supports mounting materials from thin sheet metal up to 1.25 inchesthick while significantly reducing installation labor and time.
Built for long-term reliability, the FAP43T-W features a corrosion-resistant mounting system withno metal screws securing the doglegs, making it ideal for environments exposed to humidity andtemperature variations. Additional installer-friendly features include a removable 4-pole Phoenix-styleconnector for pre-wiring and daisy chaining, a front-mounted transformer tap selector, and a uniquetrap-door input section that accommodates conduit installations.
Ideal Applications
The FAP43T-W is ideal for retail spaces, restaurants, hotels, casinos, educational facilities,corporate buildings, healthcare facilities, recreational venues, convention centers, and othercommercial environments requiring high-quality distributed audio with fast, efficient installation.
Specifications
-
Speaker Type: Coaxial
-
Driver Size: 4.5"
-
Sensitivity: 90dB (1W/1m)
-
Power Taps: 4W, 8W, 16W, 32W, and 8Ω Bypass
-
Voltage: 70.7V / 100V
-
Frequency Response: 90Hz - 20kHz
-
Dispersion: 130°
