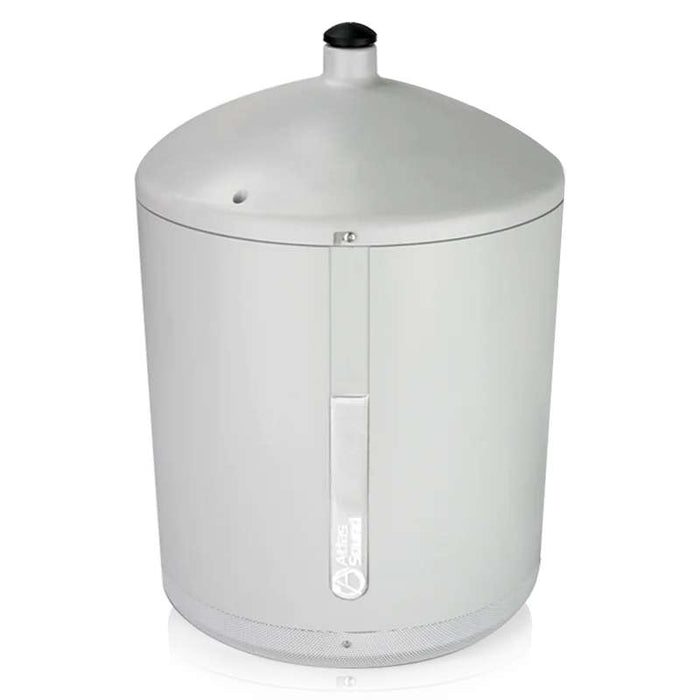

AtlasIED PM4FA-WH 4-Inch 2-Way Pendant Mount Speaker with 16-Watt 70.7V Transformer
The AtlasIED PM4FA-WH is a compact, high-performance pendant mount loudspeaker designed for commercial audio applications requiring exceptional speech intelligibility, background music reproduction, and architectural aesthetics. Featuring the proven AtlasIED FA134 Strategy Series 4-inch coaxial driver, the PM4FA-WH delivers wide coverage, natural sound quality, and flexible installation options for open ceiling environments.
- High-performance 4-inch coaxial loudspeaker
- Integrated 70.7V transformer with multiple wattage taps
- 16W maximum transformer tap with 8-ohm direct input capability
- Wide 130° coverage pattern
- Frequency response of 70Hz to 20kHz
- 88dB average sensitivity
- Compact and attractive white pendant enclosure
- Concealed terminal block for clean installation
- Includes 3-meter suspension cable and mounting hardware
- Compatible with standard 3/4-inch ceiling fan hardware
- Ideal for speech, paging, and background music applications
Premium Sound in a Compact Pendant Design
The PM4FA-WH utilizes the same AtlasIED FA134 Strategy Series driver found in the popular FAP42T ceiling speaker system, delivering proven acoustic performance in a stylish pendant mount configuration. Its compact design makes it an excellent solution for open architecture spaces where ceiling-mounted speakers are impractical or where exposed ceilings are part of the overall design aesthetic.
Designed for both music and paging applications, the PM4FA-WH provides remarkably natural sound reproduction with impressive clarity across the entire frequency range.
Wide Coverage Performance
The integrated 4-inch FA134 coaxial driver provides a broad 130-degree coverage pattern, equivalent to 65 degrees off-axis in the critical 2kHz octave band. This exceptionally wide dispersion allows a single loudspeaker to effectively cover larger listening areas while maintaining consistent audio quality throughout the space.
The result is more efficient system design, reduced loudspeaker count, and evenly distributed sound for commercial environments.
Full-Range Audio Reproduction
With a frequency response of 70Hz to 20kHz, the PM4FA-WH delivers balanced full-range performance suitable for background music, foreground music, paging, announcements, and general-purpose commercial audio applications.
The coaxial architecture ensures smooth integration between frequency ranges, producing clear vocals, detailed music reproduction, and excellent intelligibility in a wide variety of environments.
Flexible 70.7V Transformer Operation
The built-in 70.7V transformer provides multiple power tap settings to accommodate distributed audio systems of varying sizes and requirements. Installers can quickly configure output levels while maintaining consistent performance throughout the audio system.
- 1 Watt tap
- 2 Watt tap
- 4 Watt tap
- 8 Watt tap
- 16 Watt tap
- 8-ohm direct input operation
All connections are terminated through a concealed terminal block, maintaining the speaker's clean and professional appearance after installation.
Easy Pendant Installation
The PM4FA-WH is designed for quick and efficient installation in open ceiling environments. Each speaker includes a 3-meter suspension cable kit featuring a self-gripping ferrule system that simplifies mounting and height adjustment.
This design minimizes installation time while ensuring secure and reliable suspension in a variety of commercial settings.
Multiple Mounting Options
For open beam ceilings, the included suspension cable system provides a straightforward mounting solution. When installation from hard ceiling surfaces is required, the PM4FA-WH is compatible with standard 3/4-inch ceiling fan mounting hardware, providing additional flexibility for contractors and installers.
These options allow the speaker to adapt easily to diverse architectural and construction requirements.
Architecturally Friendly Appearance
Finished in an attractive white enclosure, the PM4FA-WH is designed to complement modern commercial interiors. Its sleek pendant form factor allows it to integrate naturally into exposed ceiling environments while providing professional-grade audio performance.
The discreet design makes it ideal for retail spaces, hospitality venues, educational facilities, offices, and other architecturally sensitive installations.
Optimized for Commercial Applications
The combination of wide coverage, compact size, and full-range frequency response makes the PM4FA-WH an excellent choice for distributed audio systems requiring consistent performance and visual appeal. Whether used for music playback, paging, or mixed-use applications, the loudspeaker delivers reliable performance and high intelligibility throughout the listening area.
Technical Specifications
- Speaker Type: 2-Way Coaxial Pendant Speaker
- Driver: 4-Inch AtlasIED FA134 Strategy Series Driver
- Sensitivity: 88dB Average
- Frequency Response: 70Hz – 20kHz
- Coverage Angle: 130°
- Transformer Taps: 1W, 2W, 4W, 8W, 16W
- Direct Input Impedance: 8 Ohms
- 8-Ohm RMS Power Handling: 25 Watts
- Operating Voltage: 70.7V Distributed Audio Systems
- Mounting: Pendant Suspension or 3/4-Inch Ceiling Fan Hardware
- Diameter: 9.25 Inches (23.495 cm)
- Included Accessories: 3-Meter Suspension Cable and Mounting Hardware
- Finish: White
Ideal Applications
The AtlasIED PM4FA-WH is ideal for retail stores, restaurants, coffee shops, hospitality venues, educational facilities, corporate offices, fitness centers, transportation terminals, and other commercial environments requiring high-quality audio performance in an attractive pendant-mounted loudspeaker. Its wide coverage, flexible installation options, and compact design make it an excellent choice for modern open-ceiling sound systems.
