Artome X10 Premium All‑in‑One Mobile Collaboration Solution AV Cart

Artome X10 Premium All‑in‑One Mobile Collaboration Solution AV Cart

Co‑created with users, Artome X10 is a smart, flexible AV platform designed for multi‑purposespaces and modern school environments. It adapts effortlessly to changing needs—deliveringreliable performance wherever learning, collaboration, or presentations take place.

Compatible Products: Panasonic VMZ Series Projectors | Artome Connect App | Hybridock™

Perfect Image Height. With Ease.

Built‑in tilt adjustment allows you to fine‑tune image height quickly and precisely,ensuring optimal projection for any space or setup.

Let the Space Transform

Make the most of every environment. Artome X10 delivers AV exactly when and where it’s needed,allowing spaces to adapt to the moment—not the other way around.

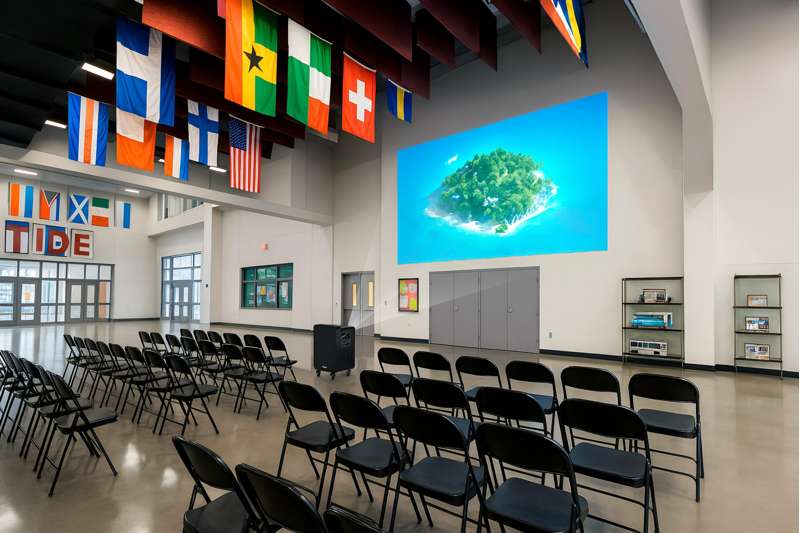

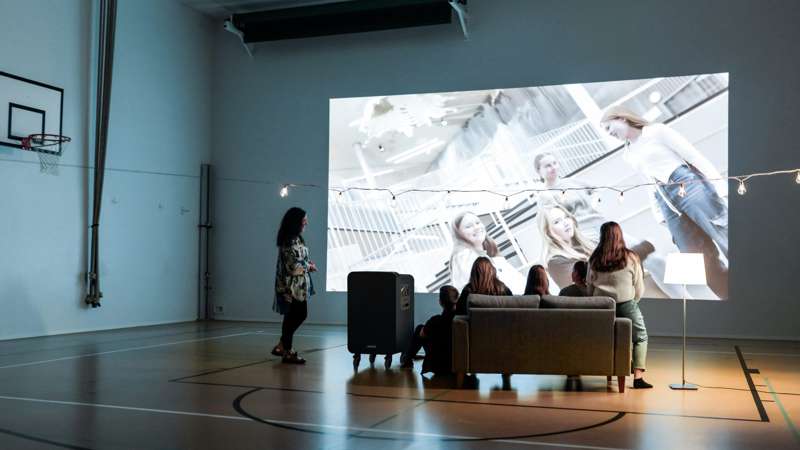

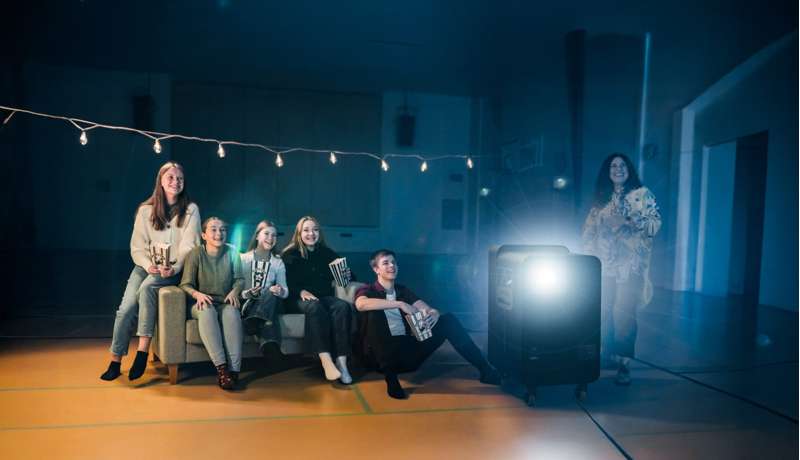

Unforgettable Moments, Anywhere

Not every space is designed for presentations, but every message deserves to be seen,heard, and felt. Whether in a gymnasium or multi‑purpose room, Artome X10 brings clarity,impact, and adaptability to any setting.

Effortless Setup

Artome automatically detects compatible projectors and handles configuration for you.Simply connect the cables and start—no complex setup or technical expertise required.

More Than a Cart

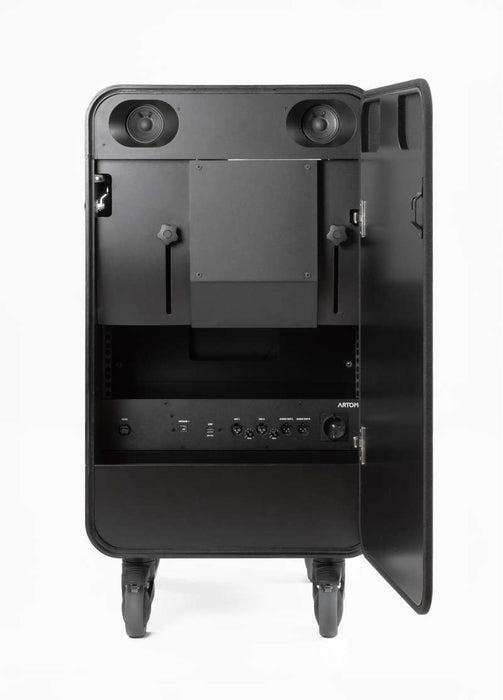

Artome X10 is a complete AV platform. Connect microphones, laptops, and webcams to supportboth in‑room and remote presentations. Built‑in rack space enables easy integration ofwireless receivers, casting devices, and other AV components.

Smart Platform Capabilities

Fast and Effortless Use

Control Artome X10 with the included Bluetooth remote. Adjust volume, mute AV, or freezethe image from anywhere in the room.

Artome Connect

The Artome Connect app provides advanced control, allowing you to fine‑tune audio,adjust security settings, and customize connections to match your environment.

General Specifications

• Product Name: Artome X10M (Panasonic PT‑VMZ‑AVCART)
• Materials: Birch plywood, MDF, steel, aluminum, polyester fabric, glass
• Dimensions (W × H × D): 52 × 96.5 × 52 cm (20.5″ × 38″ × 20.5″)
• Frame Color: Black (default), White (custom)
• Door Options: Black (standard), Nevada, Walnut
• Weight (without projector): 50 kg (110 lb)
• Warranty: 24 months (extendable to 60 months*)

Technical Information

• Power Input: 100–120V ~ 50/60Hz, 7A (fuse)
• Power Output: 100–240V ~ 50/60Hz, 2A (240W @ 120V)
• Power Consumption: 75W (without projector)
• Audio: 2.1 speaker system, max SPL 99 dB @ 1 m
• Operating Temperature: 0–30°C (32–86°F)
• 19” Rack Space: 3U, 27.9 cm (11″ depth)

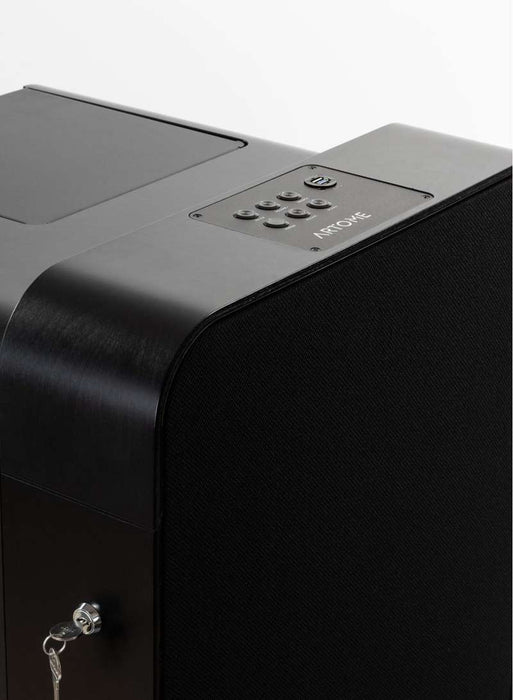

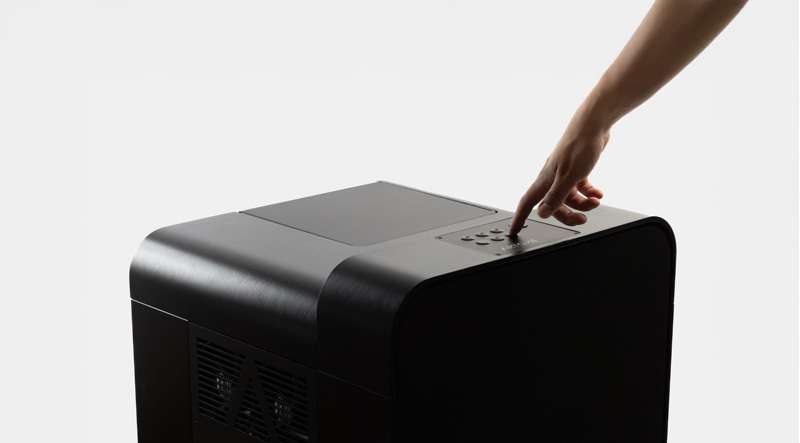

• Controls: Power, Source, Volume ±, AV Mute, Freeze, Mic gain
• Bluetooth Remote Control: Yes
• Artome Connect Compatible: Yes
• Automatic Projector Configuration: Yes

Connections

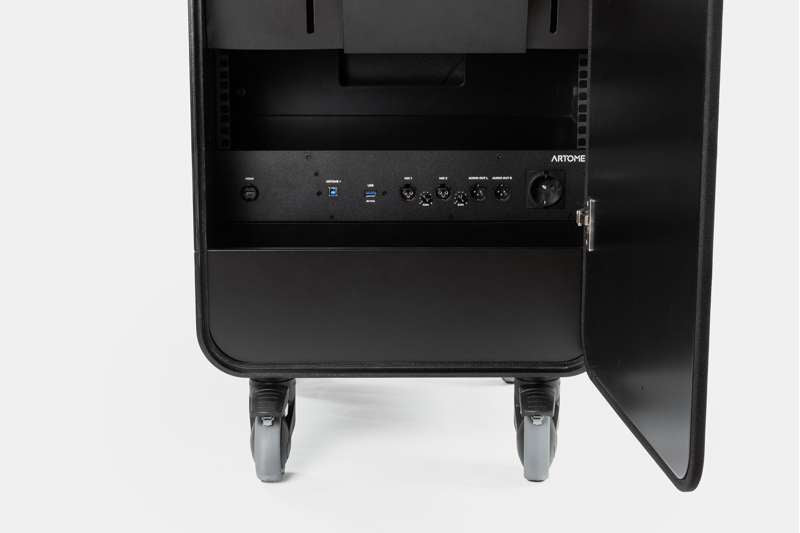

Front Panel

• 1 × HDMI
• 1 × USB‑B
• 2 × XLR microphone inputs (with level control)
• 2 × XLR outputs
• 1 × USB‑A
• 1 × Power output (100–240V ~ 50/60Hz)

Top Panel

• 1 × USB‑A (webcam connection)

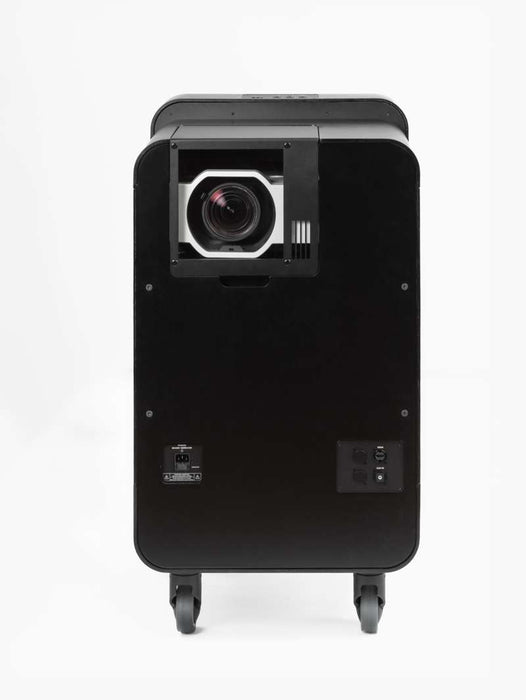

Rear Panel

• 1 × HDMI
• 1 × 3.5 mm audio input
• 2 × customizable D‑type grommets

Projector Connections: All unused projector connectors remain available.

Compatible Panasonic Projectors
