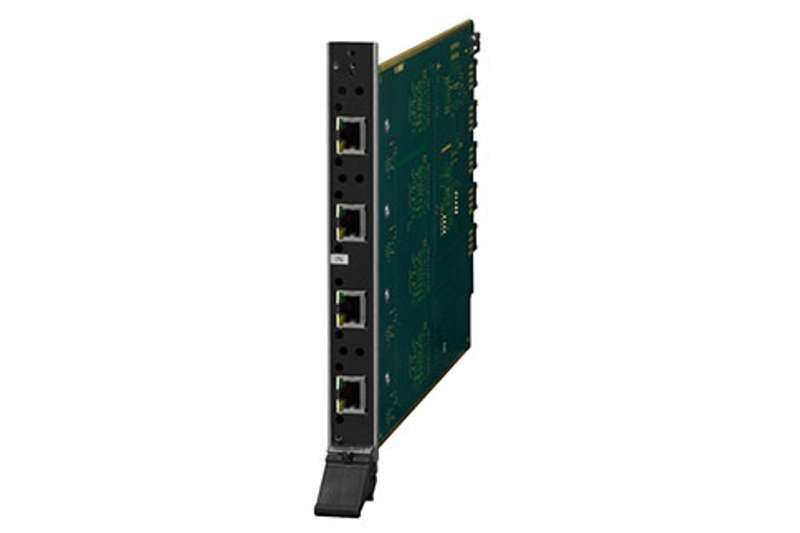

FG1058-570-FX Enova DGX DXLink Input Board
AMX's FG1058-570 is a HDCP compliant twisted pair cable input board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per board designed to receive audio and video from DXLink Twisted Pair Transmitters while passing bi-directional control and Ethernet signals over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Input Board to power DXLink Twisted Pair Transmitters.
Common ideal applications for the Enova DGX DXLink Twisted Pair Input Board is for when source devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.
AMX FG1058-570 Features:
- Only One Cable – Receive audio and video whilepassing control, Ethernet and power over one twisted pair cable
- Send HDMI signals up to 100 Meters – Extend the reachof the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
- Standard Twisted Pair Cable – Save time andeffort in installation by leveraging pre-existing cost effective twisted pair cable
- Hot Swappable – Easily add or replace I/O boards atany time after deployment - the system automatically recognizes the newconfiguration and activates the boards
- HDCP Compliant
- Remotely Powered Transmitters - Power over DXLink* isavailable from the DXLink Input Board to power DXLink Transmitters
- 3D Support - Pass through latest video formatsincluding 3D and Deep Color
- Surround Sound Support - Pass through high definition surround soundincluding Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH thorough8 CH L-PCM
