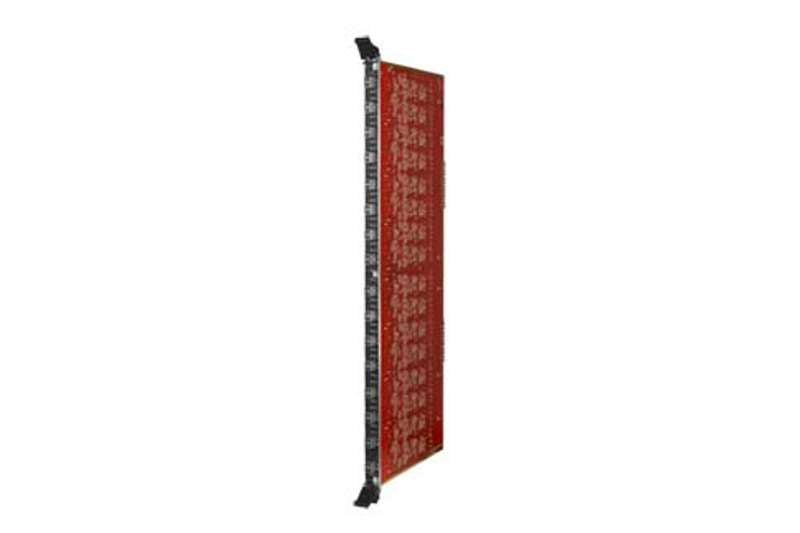

EPICADGX288-VIO-MMF-S
Epica® DGX 288 MultiMode Fiber Input/Output Board, Simplex
The EPICADGX288-VIO-MMF-S is a Simplex Multimode Fiber Input/Output Board designed for use with the Epica 288 Fiber Matrix Switcher. Each board contains 16 connections, and each connection is both an input and an output connection. Thus, each board is a full 16x16 configuration.
Compatible with DXLink Multi-Format Simplex Transmitters and DXLink HDMI Simplex Receivers, the board can also receive and send signals from or to any Enova DGX system utilizing simplex fiber boards. This makes the Epica DGX 288 the ideal solution for very large infrastructures that require multiple systems that are directed to a central hub for wider distribution.
Pass crystal clear, high resolution video with zero compression, along with audio. Compatible DXLink Fiber Receivers feature SmartScale® Technology which automatically responds to the display's declared EDID information, scales the video resolution, and adjusts the video parameters to match the display's native format. SmartScale Technology ensures every display operates at its preferred resolution and eliminates the incompatibilities that can arise in matrix switching systems when the output resolution of the source is not supported by some or all of the displays in the system.
