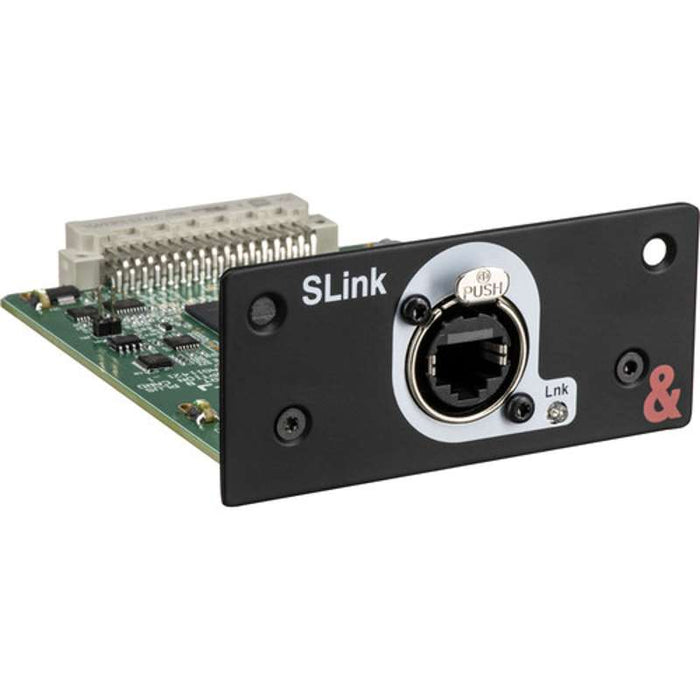

Allen & Heath SQ SLink Audio Interface Module (M-SQ-SLINK-A)
- Adds a dedicated SLink port to Allen & Heath SQ mixers and AHM processors
- Supports up to 128×128 channels of audio and preamp control
- Operates at both 96kHz and 48kHz sample rates
- Compatible with gigaACE, GX, DX, dSnake, and ME systems
- Allows simultaneous use of two different Allen & Heath protocols
- Intelligent automatic protocol switching

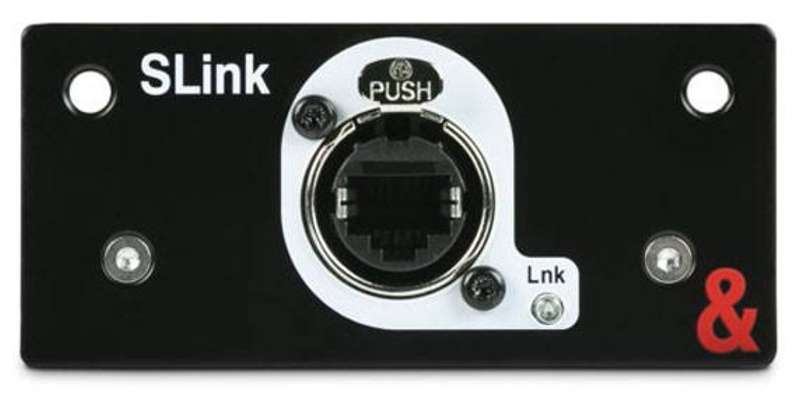

- Single locking EtherCon connection for secure network connectivity
- Plug-and-play installation with no complex configuration required
- Expands remote I/O and personal monitoring capabilities
- Ideal for live sound, installed audio, houses of worship, and educational environments
The Allen & Heath M-SQ-SLINK-A, also known as the SQ SLink Audio Interface Module, is a powerful expansion card that adds an additional intelligent SLink port to compatible Allen & Heath SQ mixers and AHM processors. Designed to increase connectivity and system flexibility, the module enables integration with a wide range of Allen & Heath audio networking protocols and remote I/O solutions.
Expand Your System with SLink
The SQ SLink module provides an additional independent SLink connection, allowing audio professionals to significantly expand the capabilities of their SQ mixer or AHM processor. Unlike the built-in SLink port, the expansion card operates independently, enabling two different networking protocols to run simultaneously within the same system.
This flexibility allows users to connect multiple remote I/O devices, personal monitoring systems, or additional consoles while maintaining streamlined system architecture and simplified audio distribution.
128×128 Channels of Audio and Control
The module supports up to 128 inputs and 128 outputs of audio and preamp control over a single network connection. This high-capacity architecture allows audio signals and control data to travel efficiently between mixers, stage boxes, expanders, and monitoring systems.
Whether used for live sound production, installed audio systems, or large-scale AV deployments, the SQ SLink module provides the bandwidth required to support complex audio workflows.
Multiple Protocol Compatibility
The intelligent SLink port supports a broad range of Allen & Heath networking technologies, including gigaACE, GX, DX, dSnake, and ME personal monitoring systems. This flexibility allows users to connect a wide variety of compatible stage boxes, expanders, mixers, and monitor systems throughout a venue or production environment.
Automatic protocol switching ensures that the connected equipment is recognized quickly, reducing setup time and simplifying deployment.
Run Two Protocols Simultaneously
One of the key advantages of the SQ SLink module is its ability to operate independently from the built-in SLink port. This enables users to run two different Allen & Heath protocols at the same time, creating highly flexible system designs.
For example, an SQ mixer can simultaneously connect to a DX stage box and an ME personal monitoring system, or run separate protocol configurations for front-of-house, monitor mixing, recording, and distributed audio applications.
Flexible Expansion for SQ and AHM Systems
For SQ series mixers, the additional SLink connection expands system I/O and provides greater deployment flexibility for remote stage boxes and personal monitoring solutions.
For AHM processors, the module enables direct access to Allen & Heath's extensive Everything I/O range of audio expanders, providing convenient system growth without requiring major infrastructure changes.
Simple Installation and Operation
The SQ SLink card is designed for plug-and-play installation. Once installed, the module is automatically recognized by the host device and requires minimal configuration to become operational.
Its user-friendly design allows system integrators and audio engineers to expand system capabilities quickly while minimizing setup complexity.
Reliable Network Connectivity
A robust locking EtherCon connector provides secure network connectivity, helping prevent accidental cable disconnection during operation. This professional-grade connection system is particularly valuable in touring, live production, and mission-critical installation environments.
The module supports both 48kHz and 96kHz operation, ensuring compatibility with a broad range of Allen & Heath equipment while maintaining outstanding audio quality.
Perfect for Professional Audio Applications
The M-SQ-SLINK-A is ideal for live performance venues, houses of worship, educational institutions, theaters, broadcast facilities, corporate AV installations, and rental production companies. Its ability to expand connectivity, support multiple network protocols, and integrate seamlessly with Allen & Heath ecosystems makes it a valuable addition to any professional audio system.
Designed for Scalable Audio Networks
Whether you're building a compact stage setup or a large distributed audio network, the Allen & Heath SQ SLink Audio Interface Module provides the flexibility and scalability needed to grow your system without compromising performance. By adding a second intelligent SLink connection, the module unlocks new possibilities for routing, expansion, monitoring, and system integration.
