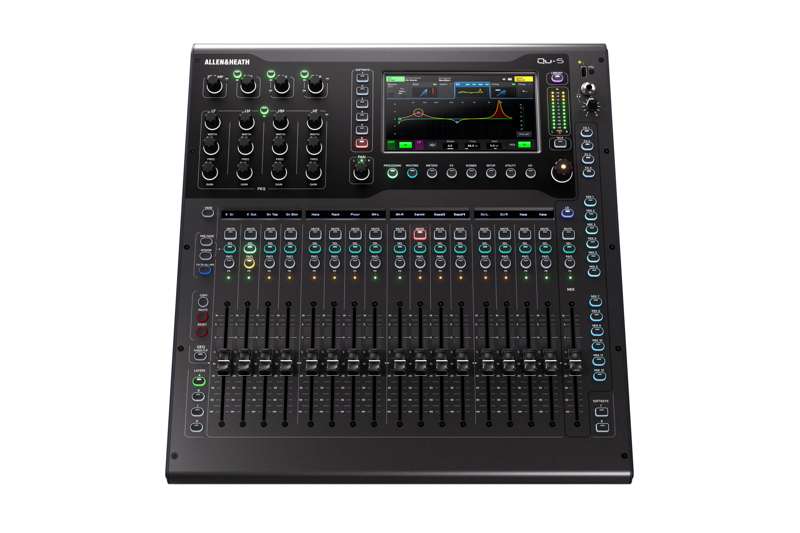

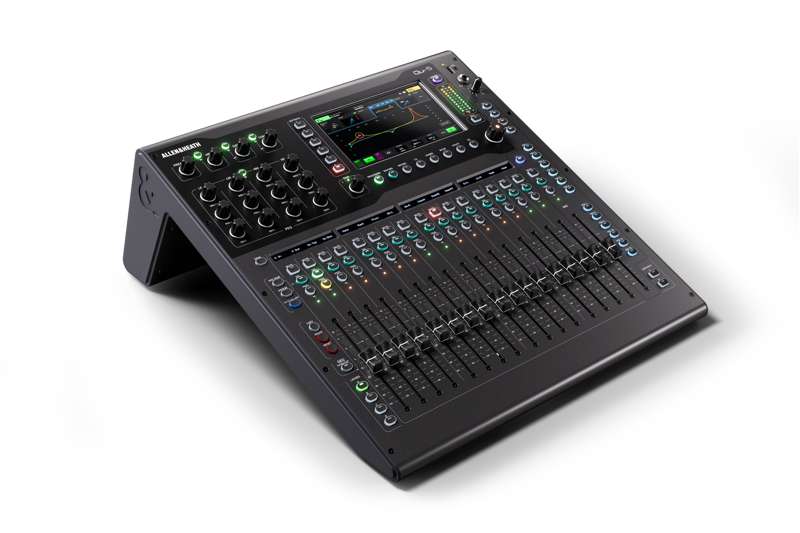

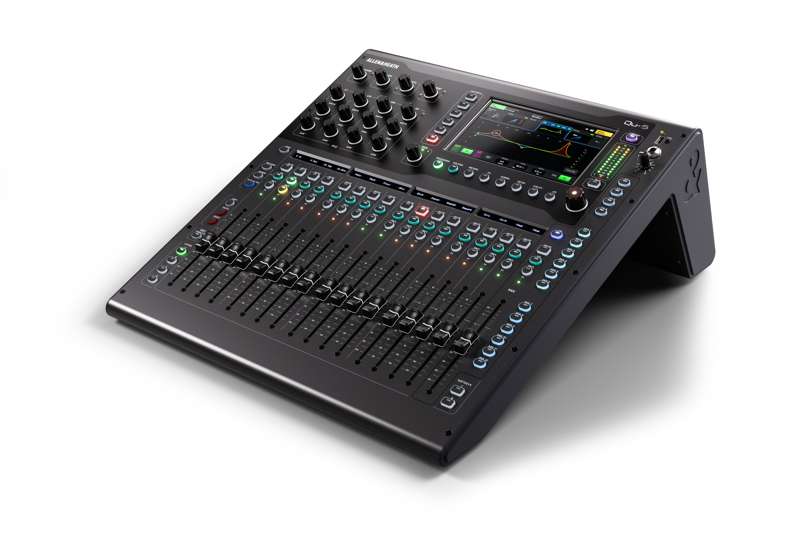

Allen & Heath Qu-5D Digital Mixer
- 96kHz XCVI FPGA processing core with ultra-low latency under 0.7ms
- 38 input channels to mix and 28 configurable buses
- Integrated 16×16 Dante audio networking interface
- 16 premium XLR/TRS combo mic/line inputs
- 17 motorized 100mm faders with 4 customizable layers
- 7-inch capacitive touchscreen for intuitive operation
- 128×128 SLink port for Everything I/O expansion
- Six Multi-FX engines with dedicated stereo returns
- Built-in Gain Assistant, Feedback Assistant, and Automatic Mic Mixer
- 32×32 USB-C audio interface and SD card multitrack recording
- Dante Domain Manager ready with seamless network integration
- Remote control via Windows, macOS, iOS, and Android applications
The Allen & Heath Qu-5D combines the powerful digital mixing capabilities of the Qu-5 platform with integrated Dante networking, creating a versatile solution for live sound, installed audio, houses of worship, education, corporate AV, and broadcast environments. Designed around Allen & Heath's acclaimed 96kHz XCVI FPGA engine, the Qu-5D delivers premium sound quality, advanced processing, and seamless audio networking in a compact and rack-mountable format.
Integrated Dante Audio Networking
A key advantage of the Qu-5D is its built-in 16×16 Dante interface, allowing direct connectivity to Dante-enabled amplifiers, DSP processors, stage boxes, recording systems, conferencing solutions, and networked audio infrastructures.
By eliminating the need for a separate networking card, the Qu-5D provides a streamlined solution for organizations that require Audio-over-IP connectivity while maintaining the simplicity and reliability of the Qu platform.
96kHz XCVI FPGA Processing
The Qu-5D is powered by Allen & Heath's renowned XCVI FPGA processing engine operating at 96kHz. This advanced architecture delivers exceptional audio clarity, outstanding dynamic range, and ultra-low latency performance of less than 0.7 milliseconds.
The result is a highly responsive mixing platform capable of handling demanding professional audio applications with excellent sonic transparency and reliability.
Extensive Mixing Capability
Featuring 38 input sources to mix and a flexible output architecture, the Qu-5D is designed to accommodate a wide range of live and installed sound applications. The mixer supports mono and stereo channels, auxiliary mixes, groups, matrix outputs, and dedicated effects sends, providing the flexibility required for complex productions and system designs.
Whether mixing a live band, managing a worship service, supporting a conference, or operating a multi-zone AV environment, the Qu-5D provides ample processing and routing resources.
Intuitive User Interface
The mixer features a vibrant 7-inch capacitive touchscreen that provides quick access to channel processing, routing, effects, scene management, and system settings. The touchscreen workflow is complemented by dedicated physical controls, creating an intuitive mixing experience for both experienced engineers and occasional operators.
Seventeen motorized 100mm faders and four customizable layers allow rapid access to inputs, outputs, effects, and control functions while maintaining a compact console footprint.
Premium Analogue Connectivity
The Qu-5D includes 16 high-quality XLR/TRS combo mic and line inputs featuring Allen & Heath's digitally controlled preamps. These preamps provide excellent headroom, low noise performance, and transparent sound reproduction suitable for both live and installed audio applications.

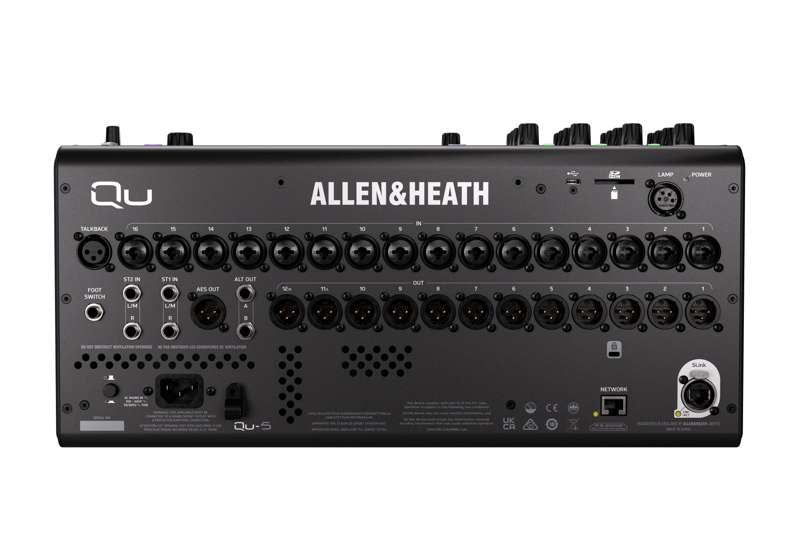

Additional connectivity includes stereo line inputs, multiple XLR outputs, AES digital output, talkback input, headphone monitoring, and dedicated output connections for flexible system integration.
Everything I/O Expansion
In addition to its integrated Dante capabilities, the Qu-5D features a 128×128 SLink port that enables connectivity to Allen & Heath's Everything I/O ecosystem. Users can connect remote stage boxes, expanders, personal monitoring systems, and additional audio hardware to expand system capacity and deployment flexibility.
This dual-network approach provides exceptional versatility for hybrid environments that require both Dante networking and Allen & Heath expansion technologies.
Advanced DSP and Processing Tools
Every channel on the Qu-5D benefits from comprehensive processing including high-pass filtering, gates, compressors, parametric equalization, and delay. Output paths include graphic EQ, feedback suppression, compression, and delay processing to optimize loudspeaker performance and overall system tuning.
The integrated 32-channel DEEP Automatic Mic Mixer enhances speech intelligibility and simplifies microphone management in meeting rooms, classrooms, worship environments, and conference facilities.
Built-In Intelligent Mixing Tools
Allen & Heath's Gain Assistant technology automatically helps users establish optimal preamp gain levels, reducing setup time and simplifying operation. The Feedback Assistant continuously identifies and suppresses problematic frequencies, helping maintain stable and feedback-free operation.
These intelligent tools allow operators to achieve professional results while reducing the complexity associated with system setup and management.
Professional Effects Processing
Six internal Multi-FX engines provide access to a comprehensive range of studio-quality reverbs, delays, modulation effects, and dynamic processing tools. Dedicated stereo returns ensure efficient use of mixer resources while maintaining maximum flexibility for effects management.
This integrated processing eliminates the need for external effects hardware in many applications.
Recording and Playback Options
The Qu-5D includes a powerful 32×32 USB-C audio interface for multitrack recording and playback directly from a computer. Integrated SD card recording further enables standalone multichannel recording without requiring external software or hardware.
These recording capabilities make the mixer ideal for virtual soundchecks, content creation, event recording, streaming, training, and broadcast workflows.
Remote Control and System Management
Remote operation is supported through dedicated applications for Windows, macOS, iOS, and Android devices. Operators can adjust mixes, configure routing, manage scenes, and monitor system performance from virtually anywhere within the venue.
Additional features such as scene memories, user permissions, recall filters, processing libraries, and DAW control integration help streamline workflows and improve operational efficiency.
Ideal Applications
The Allen & Heath Qu-5D is ideal for houses of worship, conference centers, educational institutions, theaters, hospitality venues, corporate AV environments, broadcast facilities, rental production companies, and live music venues requiring professional digital mixing with integrated Dante networking capabilities.
