Allen & Heath IP1 Programmable Wallplate Controller, White
- Single rotary push-and-turn controller for intuitive operation
- Programmable control of volume, source selection, and preset recall
- Integrated color LCD display for clear visual feedback
- Available in US (Decora) and EU/UK (MK Elements) form factors
- Compatible with Allen & Heath AHM, dLive, and Avantis systems
- TCP/IP networking with Power over Ethernet (PoE) support
- Simple configuration through AHM System Manager, Avantis Director, or dLive Director
- Multiple controllers can be deployed throughout a facility
- Automatic firmware synchronization for simplified maintenance
- Ideal for hospitality, education, corporate, and commercial AV environments

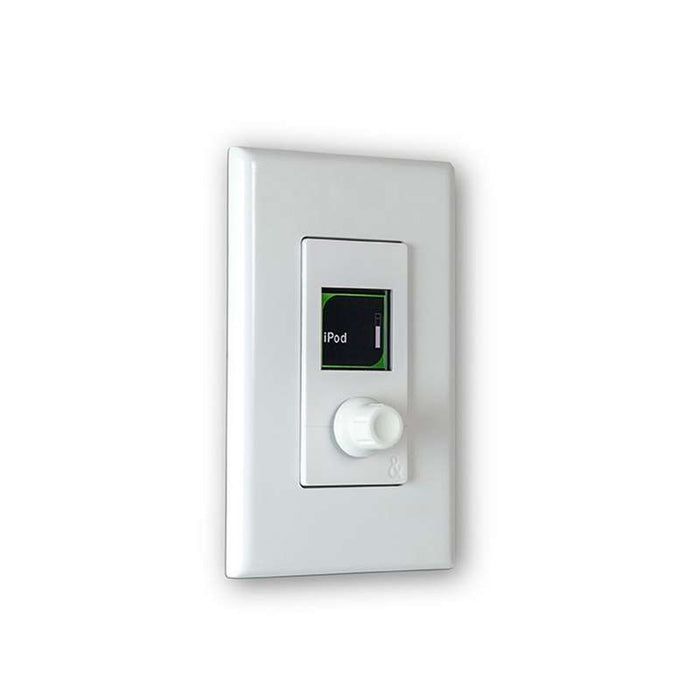

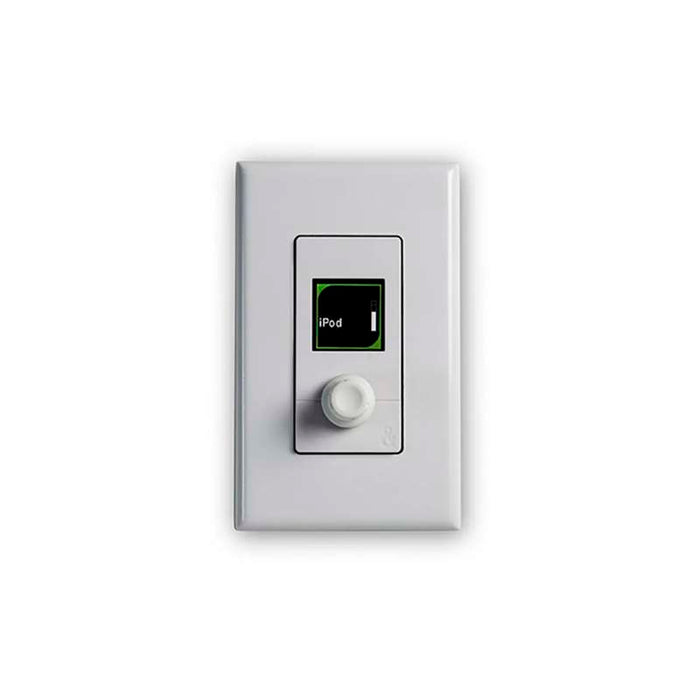

The Allen & Heath IP1 is a compact and easy-to-use programmable wallplate controller designed to provide simple yet powerful system control for non-technical users. Featuring a single push-and-turn rotary encoder and an integrated color LCD display, the IP1 enables intuitive control of audio systems without requiring access to the main processor or mixing console.
Simple and Intuitive Operation
Designed with ease of use in mind, the IP1 allows users to control essential audio functions through a single rotary control. By simply turning or pressing the encoder, users can adjust volume levels, select music sources, recall presets, or perform other programmed functions based on the system design.
This simplified interface minimizes user training requirements while providing reliable day-to-day operation in commercial and public environments.
Clear Visual Feedback
The integrated color LCD screen provides clear visual feedback, displaying the function currently being controlled and relevant system information. This visual confirmation improves the user experience and helps prevent accidental changes to system settings.
Whether controlling background music levels, switching sources, or recalling room presets, users can quickly understand the current system status at a glance.
Flexible System Control
The IP1 can be programmed to perform a variety of system functions depending on the requirements of the installation. Common applications include zone volume control, music source selection, preset recall, and scene management within hospitality, corporate, education, and entertainment venues.
Its flexibility allows integrators to create customized control experiences tailored to the needs of specific rooms, users, and operational workflows.
Available in Multiple Form Factors
To support international installation requirements, the IP1 is available in both US and EU/UK versions. The US model is compatible with Decora-style faceplates, while the EU/UK version is designed for compatibility with MK Elements faceplates.
This ensures seamless integration into a wide range of architectural and commercial environments.
Network-Based Installation
The IP1 connects to Allen & Heath AHM, dLive, and Avantis systems using standard TCP/IP networking. Utilizing existing Ethernet infrastructure, the controller can be easily deployed throughout a facility and integrated alongside other networked control devices.
Support for Power over Ethernet (PoE) simplifies installation by providing power and communication through a single network cable, reducing wiring complexity and installation costs.
Mix and Match Controller Deployment
Multiple IP controllers can be deployed across a single system to provide localized control in different areas of a venue. Integrators can combine various Allen & Heath IP controllers to create customized control solutions for different user groups and operational requirements.
Controllers can also be configured to interact with one another, enabling coordinated control across multiple zones and spaces.
Simple Configuration and Management
The IP1 is configured using Allen & Heath AHM System Manager, Avantis Director, or dLive Director software on Windows and macOS platforms. Configuration can also be performed directly from compatible Avantis mixers and dLive surfaces.
This centralized configuration approach enables efficient deployment, management, and updates throughout the life of the installation.
Automatic Firmware Management
To simplify maintenance, the IP1 automatically synchronizes firmware with connected systems. This ensures compatibility with the host processor or mixer while reducing administrative overhead for system integrators and support personnel.
Ideal Applications
The Allen & Heath IP1 is ideal for conference rooms, hospitality venues, restaurants, hotels, educational facilities, houses of worship, retail environments, and commercial audio installations where simple, reliable user control is required. Its elegant design, intuitive operation, and flexible programming capabilities make it an excellent solution for everyday audio system management.
