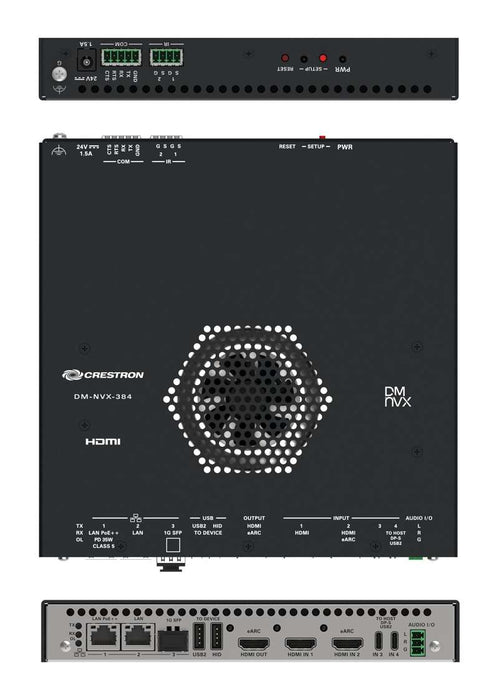

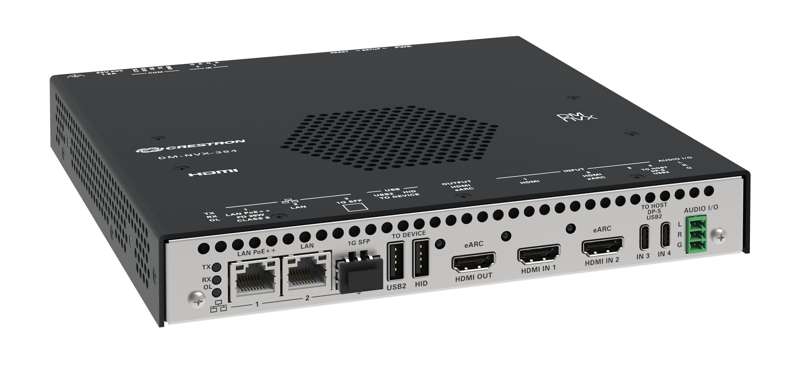

DM-NVX-384 DM NVX® 5K 4x1 AV-over-IP Switcher with HDMI® and USB-C® Connectivity
Key Features

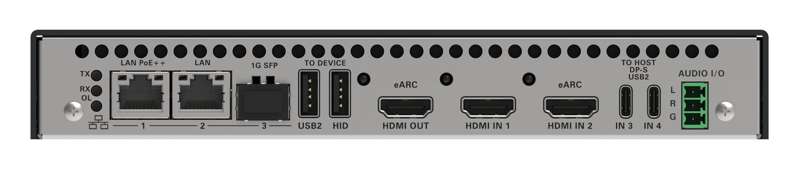

- Two HDMI® and two USB-C® inputs
- 4K60 4:4:4 video over standard Gigabit Ethernet, configurable as an encoder or decoder
- Support for 5K Wide (16:9), Ultra-Wide (21:9), and Super-Wide (32:9) resolutions
- HDR10, HDR10+, and Dolby Vision® video support
- Real-time video performance over the network with Pixel Perfect Processing technology
- Enterprise-grade security including 802.1X, Active Directory® credential management, TLS, and AES-128
- One HDMI output with 4K60 4:4:4 scaler
- Video wall processing
- Dynamic text overlay capability
- 7.1 surround sound audio support
- AES67 and analog audio embedding and de-embedding
- Copper or fiber Ethernet connectivity
- USB 2.0 and KVM signal extension and routing

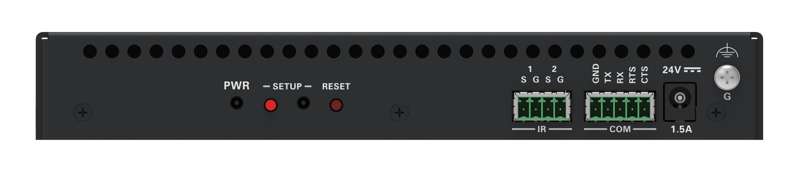

- Device control via RS-232, IR, and CEC
- Automatic point-to-point connectivity
- Easy setup via built-in web interface
- Interoperability with a Crestron 3-Series® or later control system
- Streamlined management using DM NVX Director™ virtual switching appliances
- Crestron XiO Cloud™ service support
- Compact, surface- or rack-mountable design
- Powered via PoE++ or optional power pack (sold separately)
A reliable, high‑performance AV over IP encoder or decoder with a built-in 4x1 HDMI® and USB‑C® input switcher that transports up to 5K video over standard Gigabit Ethernet with no perceptible latency or loss of quality. Supports HDR (High Dynamic Range) and HDCP 2.3 with built‑in scaling and video wall processing, adaptive bit rate, surround sound support, native AES67 transmit and receive capability, USB and KVM routing, and optional fiber connectivity. Provides a secure, scalable 4K signal routing solution for enterprise and campus‑wide content distribution applications.
HDMI® and USB-C® 4x1 Input Switching
The DM‑NVX‑384 includes two HDMI inputs and two USB-C inputs that comprise a 4x1 input switcher. When used as a decoder mounted behind a typical conference room display device, the HDMI input provides a convenient way to connect to a Crestron AirMedia® presentation gateway, video-conferencing codec, or small form factor computer. The USB‑C inputs allow for a DisplayPort™ Alt Mode video connection to laptops that do not feature an HDMI connection. The USB-C inputs also pass USB 2.0 data back and forth from the connected host PC and other DM NVX or DM NUX endpoints.
Real-Time 4K60 Video Distribution
Engineered for demanding conference room and classroom applications, DM NVX technology ensures real-time, full‑motion 4K60 video performance for the presentation of multimedia, videoconferencing, and live camera images. Interactive functions such as gameplay and using a mouse are fluid and natural.
A DM NVX system also provides stability and reliability. Line‑synchronized outputs ensure perfect synchronization of content across multiple displays for applications such as digital signage and video walls. Variable Multicast TTL (Time To Live) enables traversing multiple network routers for optimal flexibility.
Support for 5K Resolutions
The DM‑NVX‑384 introduces support for 5K video resolutions including 5K Wide (5120×2880), 5K Ultra-Wide 5120 × 2160, and 5K Super-Wide 5120 × 1440, expanding the DM NVX product family's compatibility with the latest generation of computers, monitors, and displays.
Pixel Perfect Processing Technology
A DM NVX system incorporates Pixel Perfect Processing technology, which provides flawless video transport in all applications. Depending on the operating mode, the DM‑NVX‑384 can encode or decode a video signal to achieve imperceptible end-to-end latency of less than one frame. The image quality of the source is maintained across a 1‑Gigabit network at resolutions up to 5K Wide 4:4:4.
